Low Voltage High Voltage DC24V AC220V LED Outdoor Spotlight Garden Landscape Light Power 2.5W/5W/10W/16W/25W Waterproof IP66

ITEM NO：LA-RF7-2.5
Power：2.5W
CCT(K)：2700K/3000K/4000K/6000K/RGBW/RGB
IP Rating ：IP66
Beam Angle：24.5°/42.6°
Voltage：DC24V
Light size(mm)：Φ 20*62*40 mm
Material：Aluminium+ tempered glass+#316 Stainless steel screw+with Honeycomb
Housing color：Black / RAL Color
Dimmable：Tric/PWM/0～10V/DALI
CRI：≥90
INQUIRY

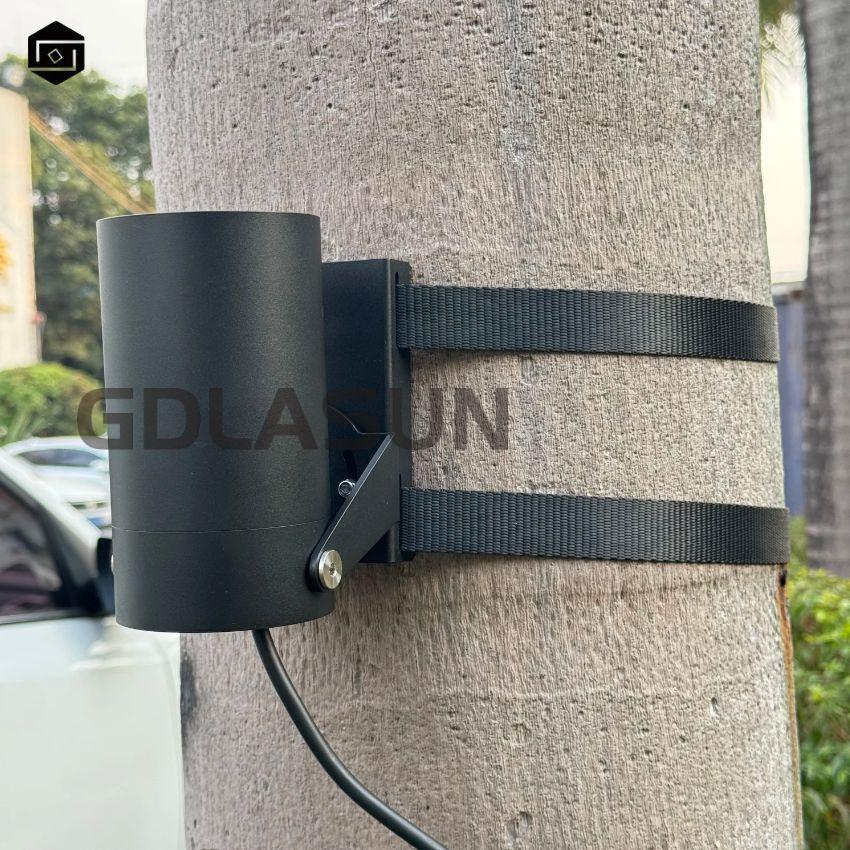

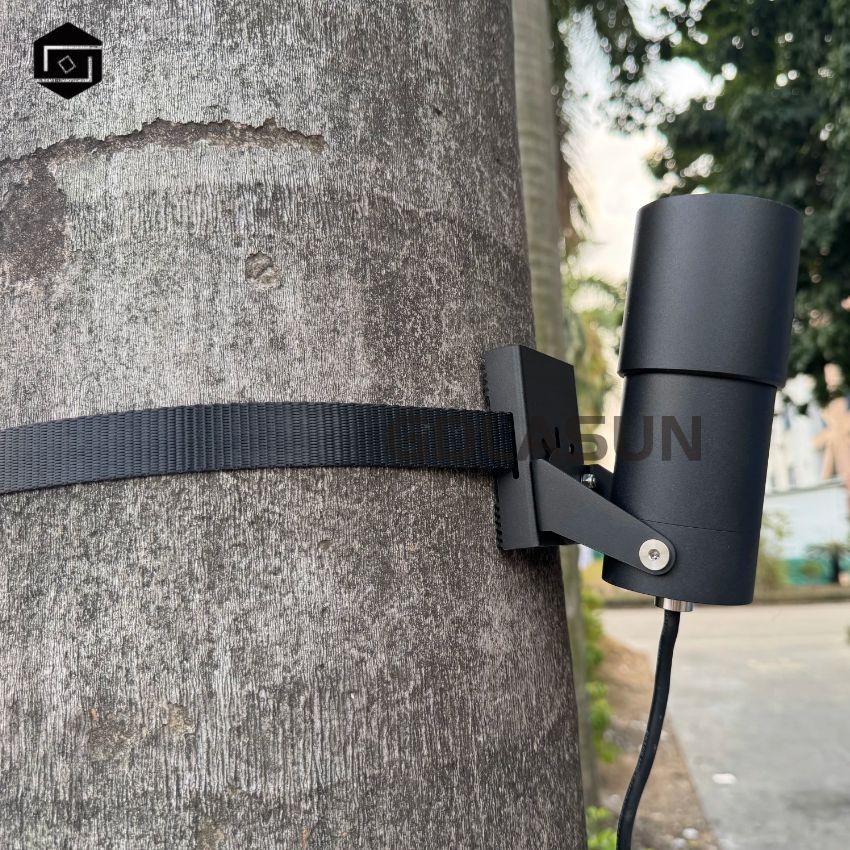

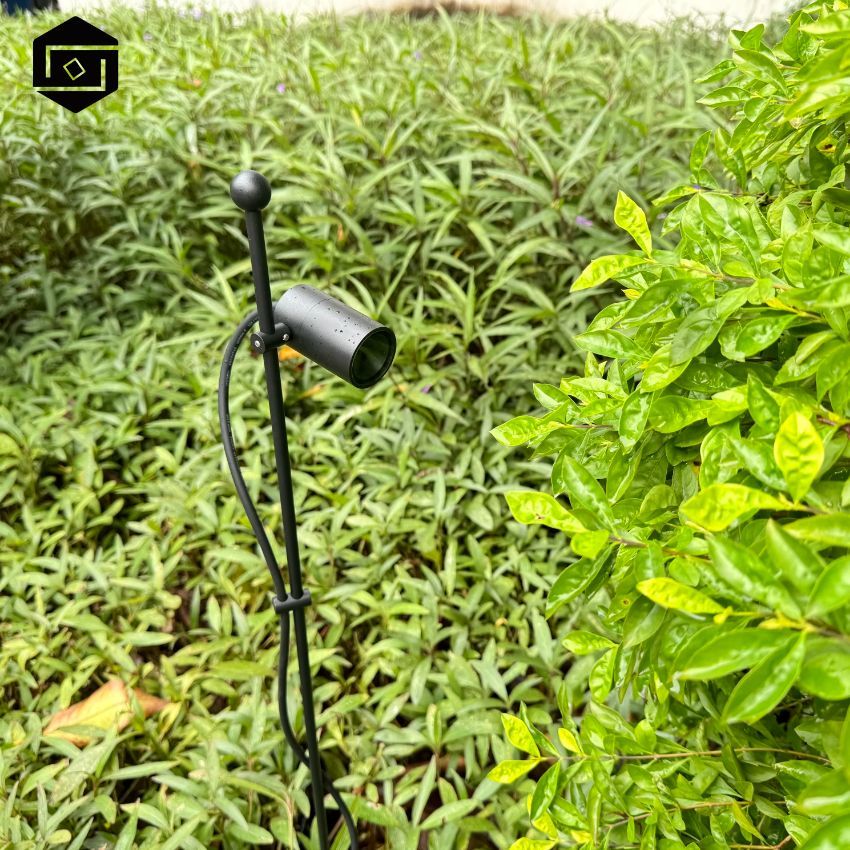

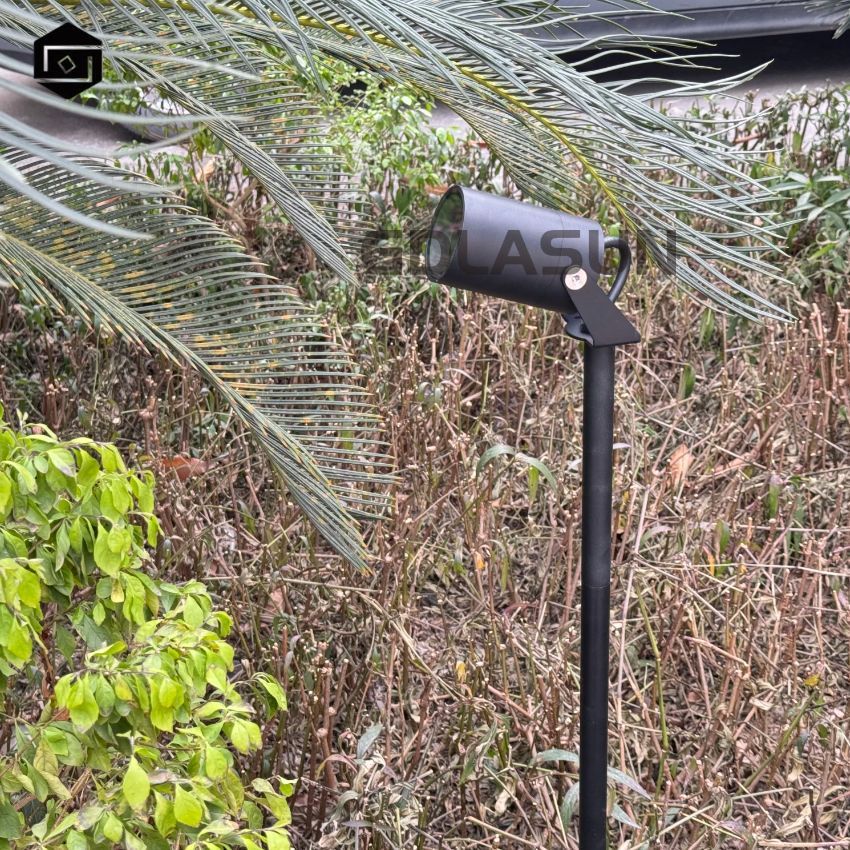

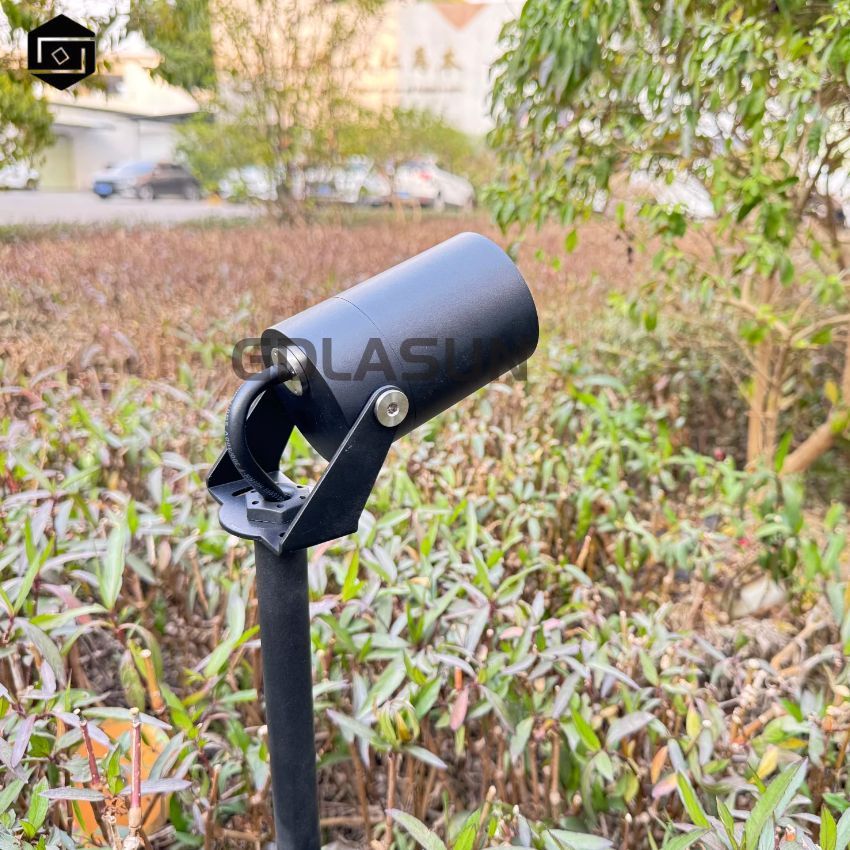

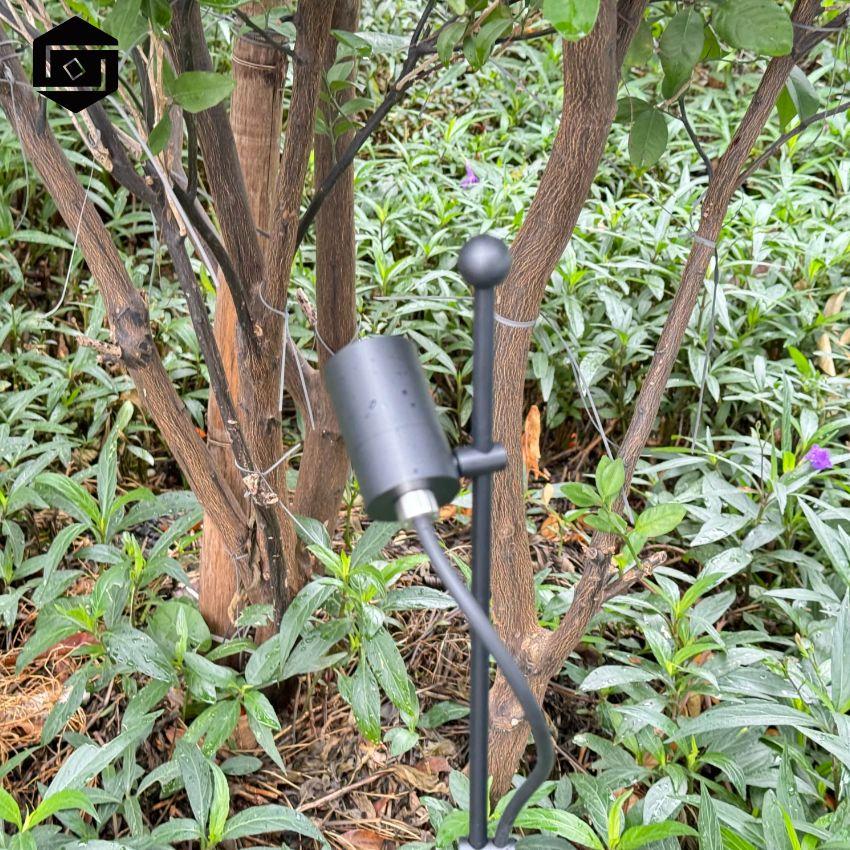

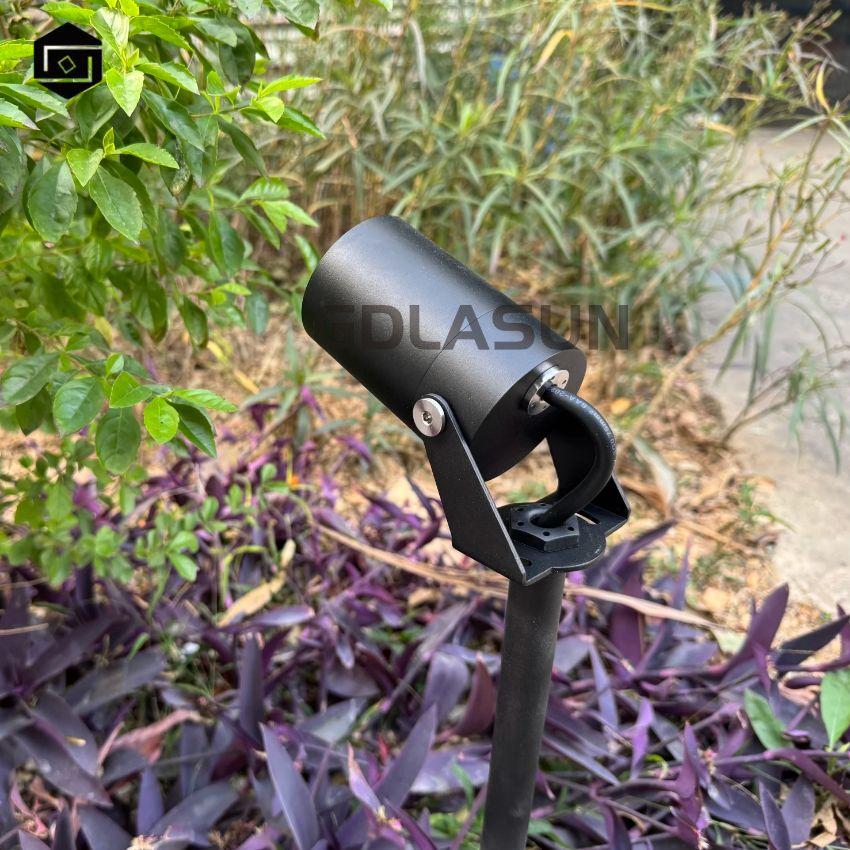

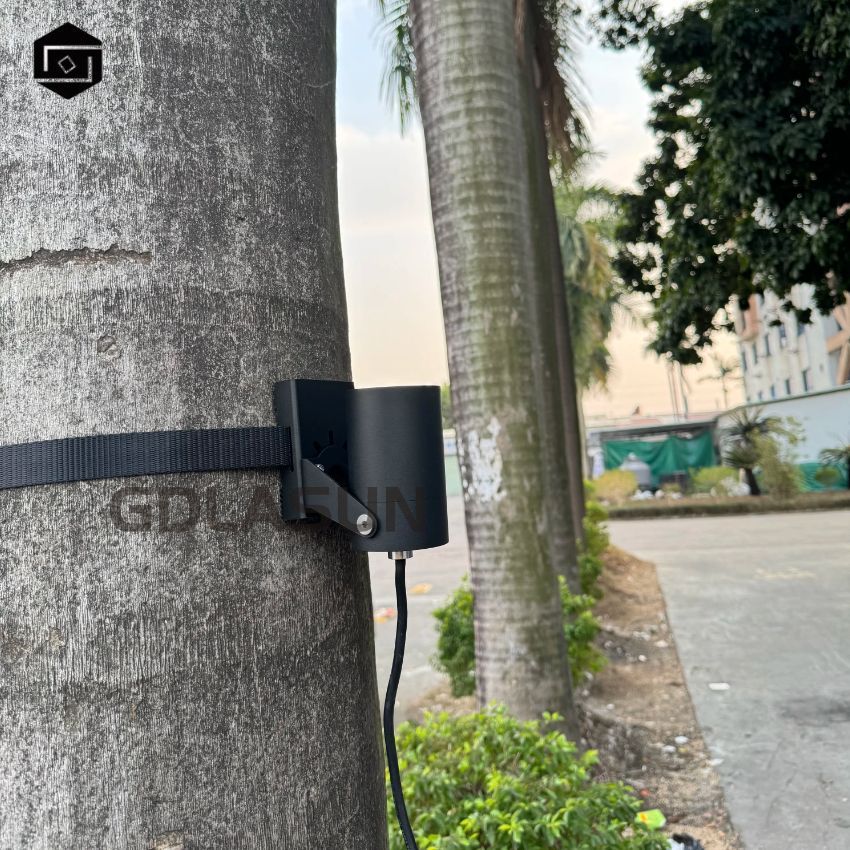

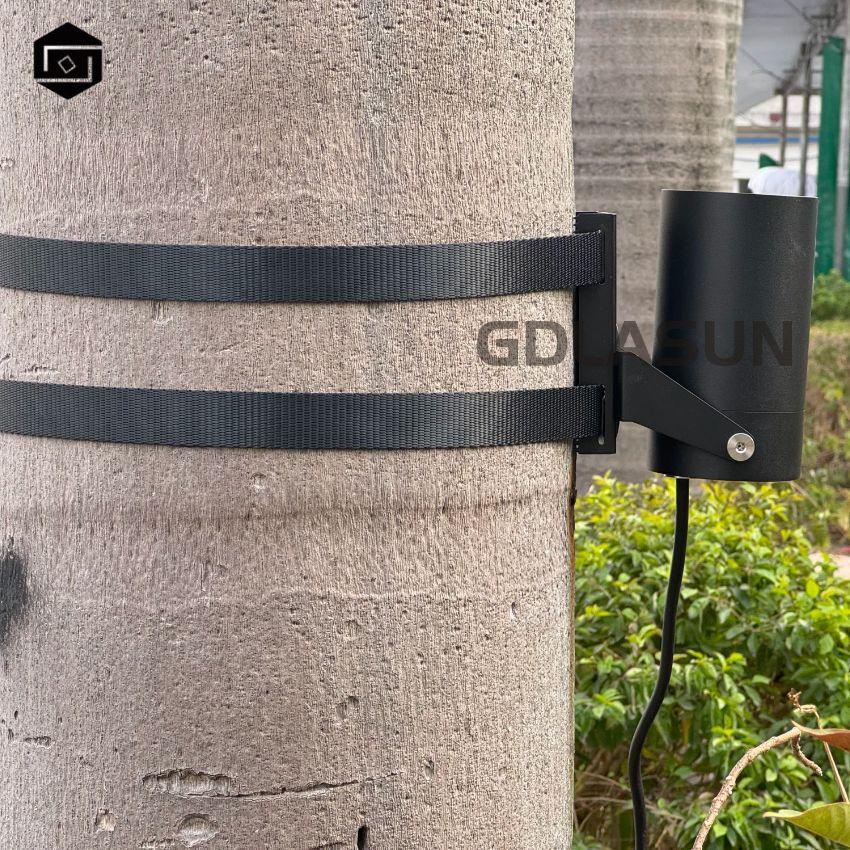

LED outdoor spotlight 2.5W 5W 10W 16W 25W, high-quality aluminum + 316L stainless steel glass cover, with honeycomb mesh inside. Low voltage DC24V, high voltage AC220V, waterproof IP66, color temperature 2700K/3000K/4000K/6000K/RGBW/RGB can be customized, wide angle and narrow angle are optional, the lamp body is generally black, and RAL color can also be customized. The color rendering is greater than 90. It can be used with poles, ground plugs, tree straps, sunshade caps, etc. Support Triac/PWM/0~10V/DALI.

Product Parameters

ITEM NO.	LA-RF7-2.5	LA-RF7-5W	LA-RF7-10W	LA-RF7-16W	LA-RF7-25W
Power	2.5W	5W	10W	15W/16W	25W
CCT(K)	2700K/3000K/4000K/6000K/RGBW/RGB
IP Rating	IP66	IP66	IP66	IP66	IP66
Beam Angle	24.5°/42.6°	13.1°/18°/25.7°/41.3°	15.6°/22°/31.5°/42.1°	12.8°/21.1°/31.4°/41.5°	15°/24°/36°/50°
Voltage	DC24V	DC24V	DC24V	DC24V	AC220V
Light size(mm)	Φ 206240 mm	Φ 387040 mm	Φ 6210680 mm	Φ 80130100mm	Φ155103120 mm
Material	Aluminium+ tempered glass+#316 Stainless steel screw+with Honeycomb
Housing color	Black / RAL Color	Black / RAL Color	Black / RAL Color	Black / RAL Color	Black / RAL Color
Dimmable	Tric/PWM/0~10V/DALI
CRI	≥90	≥90	≥90	≥90	≥90

9 (2).jpg 10W spotlight (2).jpg 16W spotlight (4).jpg

Features

1.The light source of the lamp adopts top brand LED chip, the light color is pure, and the CRI is more than 90;

2. The lamp body adopts aluminum CNC machining + aluminum radiator structure, the surface is sprayed with Aksu outdoor paint, and the double-layer coating process.

3. Various angles to choose from, uniform illumination

4. The light source of the lamp is deeply hidden, and the cut-off angle is 40°;

5. Install anti-glare honeycomb;

6. The lamp structure is mini and exquisite, suitable for use in various places such as construction and gardens.
