Characteristic Specifications:
1. The light source of the lamp adopts CREE chip, the light color is pure, and the CRI is more than 90.

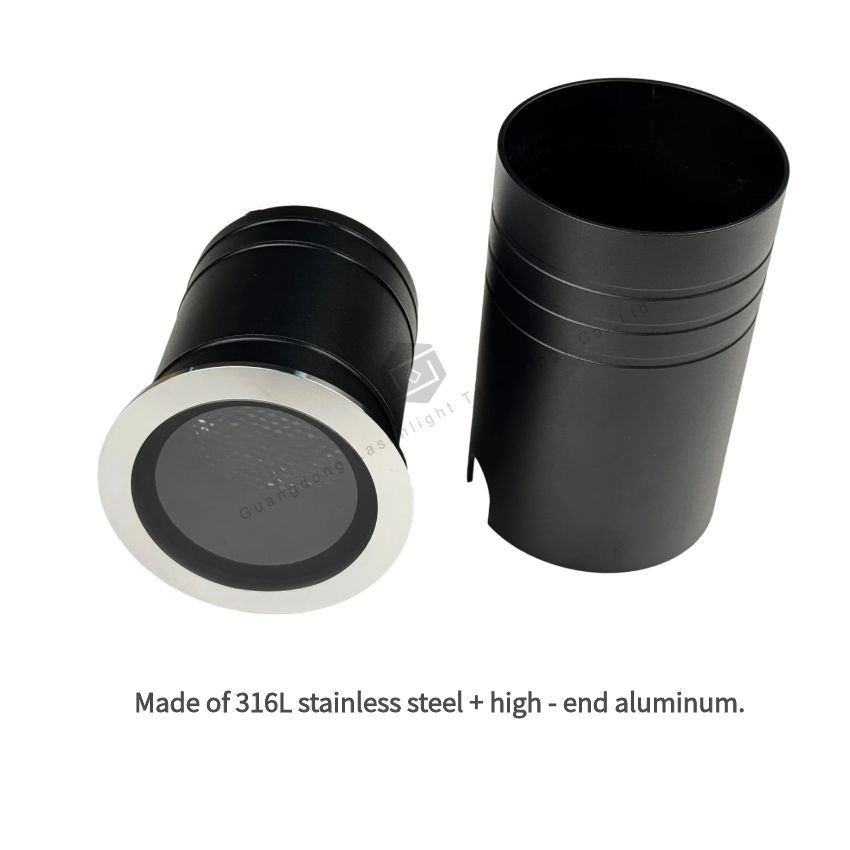

2. Thickened integrated 316L stainless steel of the panel.
3. The lamp body is processed by aluminum CNC, and the surface is sprayed with Aksu outdoor paint (double coating process.)
4. A variety of angles are optional, and the illumination is uniform.

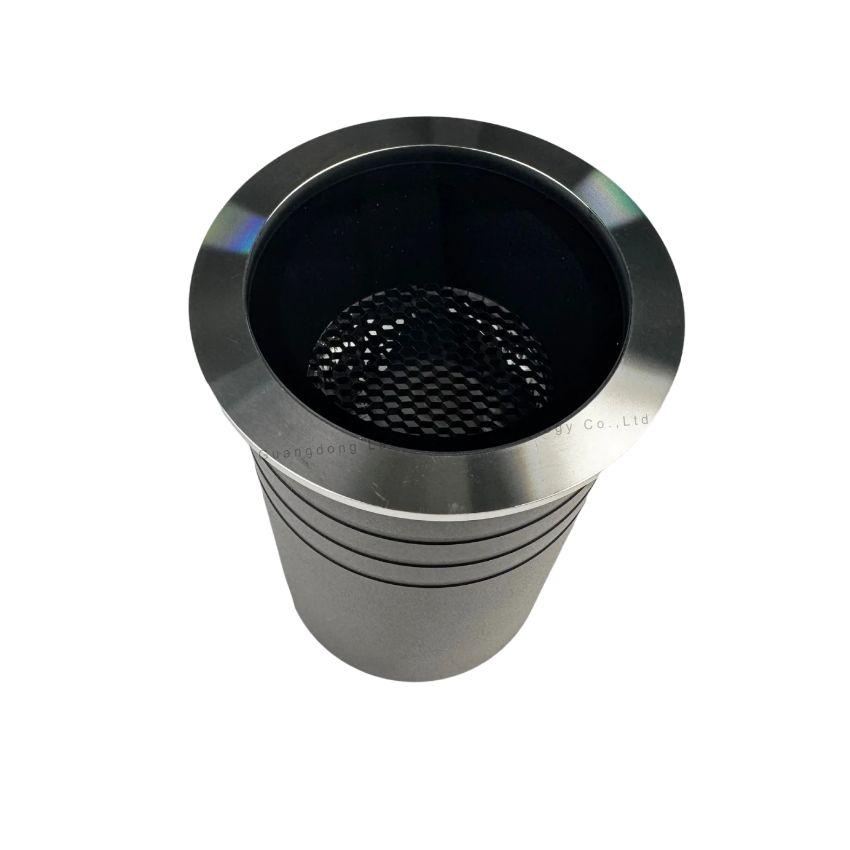

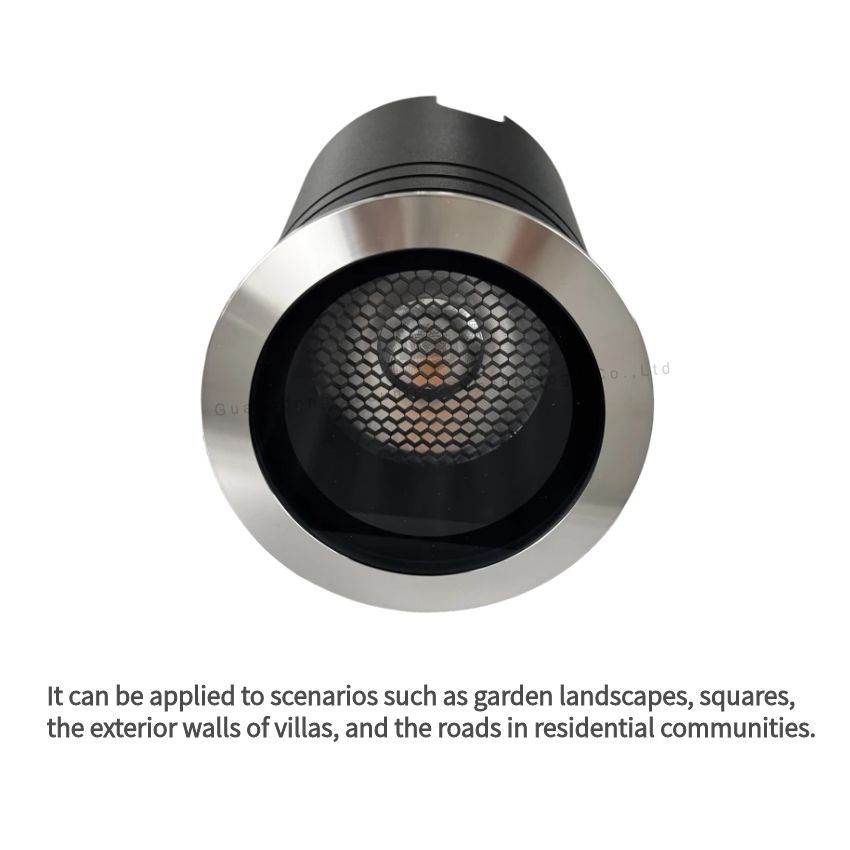

5. The light source of the lamp is deeply hidden, and the light cutting angle is 40°.

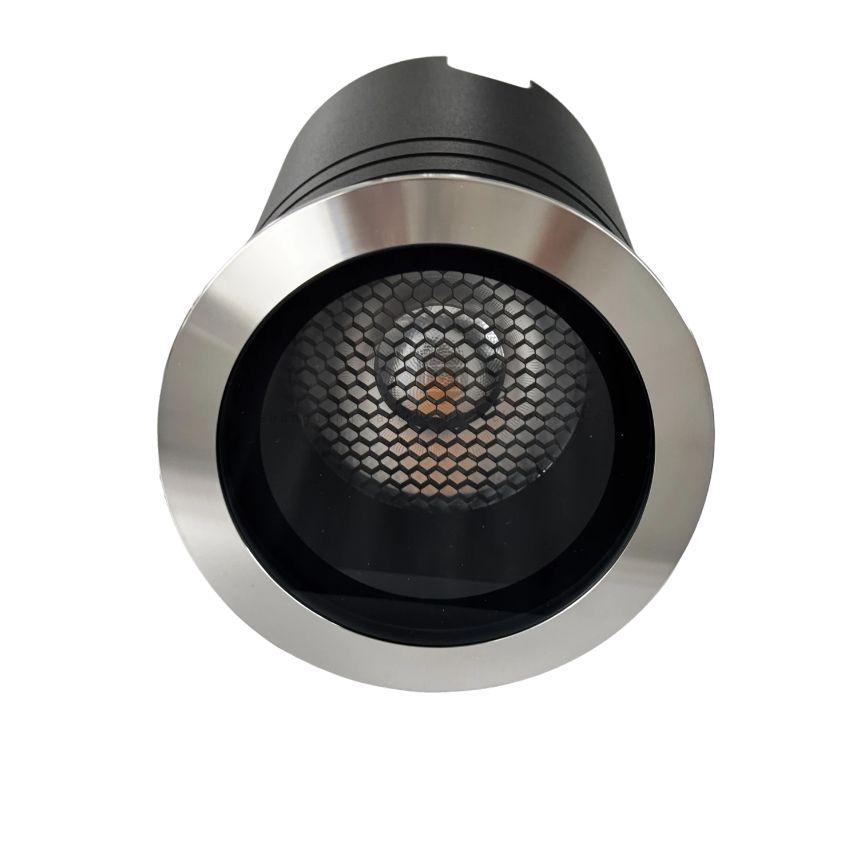

6. Install anti-glare honeycomb.
7. The contact surface test is less than 40 degrees (cover, glass).
8. The lamp structure is exquisite, suitable for use in various places such as buildings and gardens.

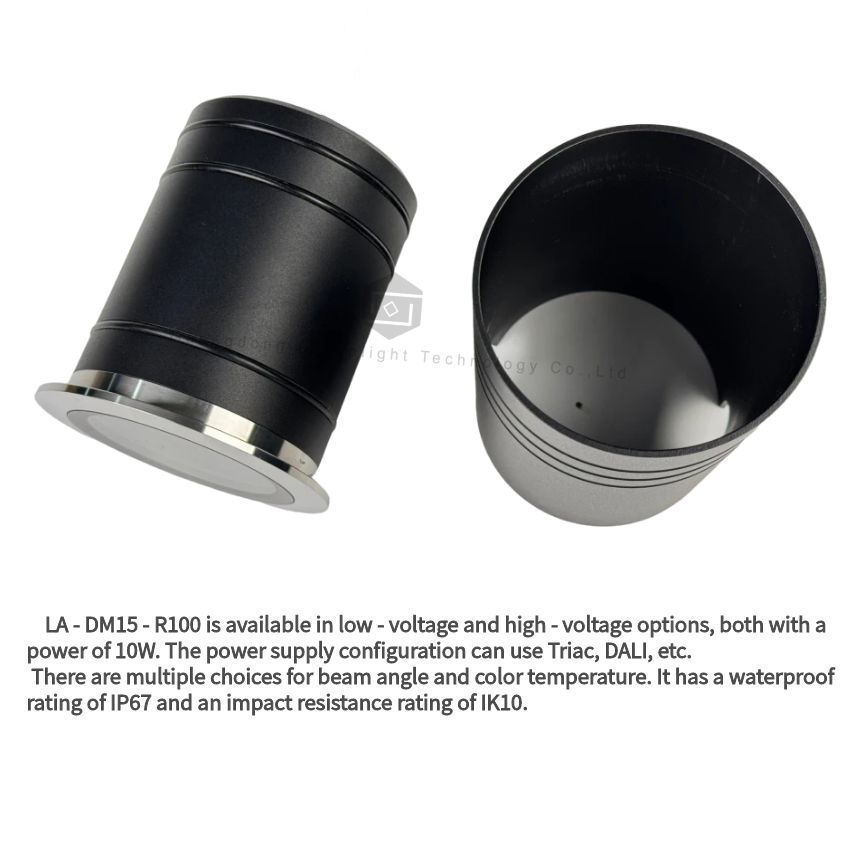

Product Parameters
| Item No. | LA-DM15-R100 | LA-DM15-R100H |
| Input Current | Constant Voltage DC24V | AC220V-240V |
| Power(Watts) | 10W | 10W |
| Power suppy unit | ¨Integated ¨Triac/PWM ¨0~10V/DALI | / |
| Driver Control mode | / | ON/OFF |

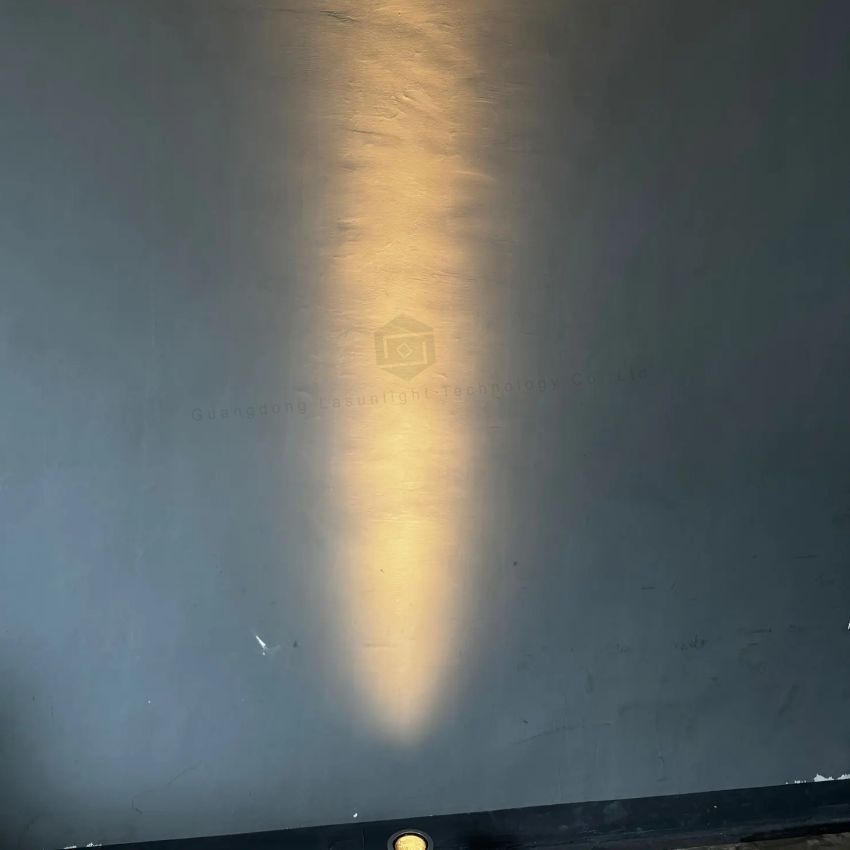

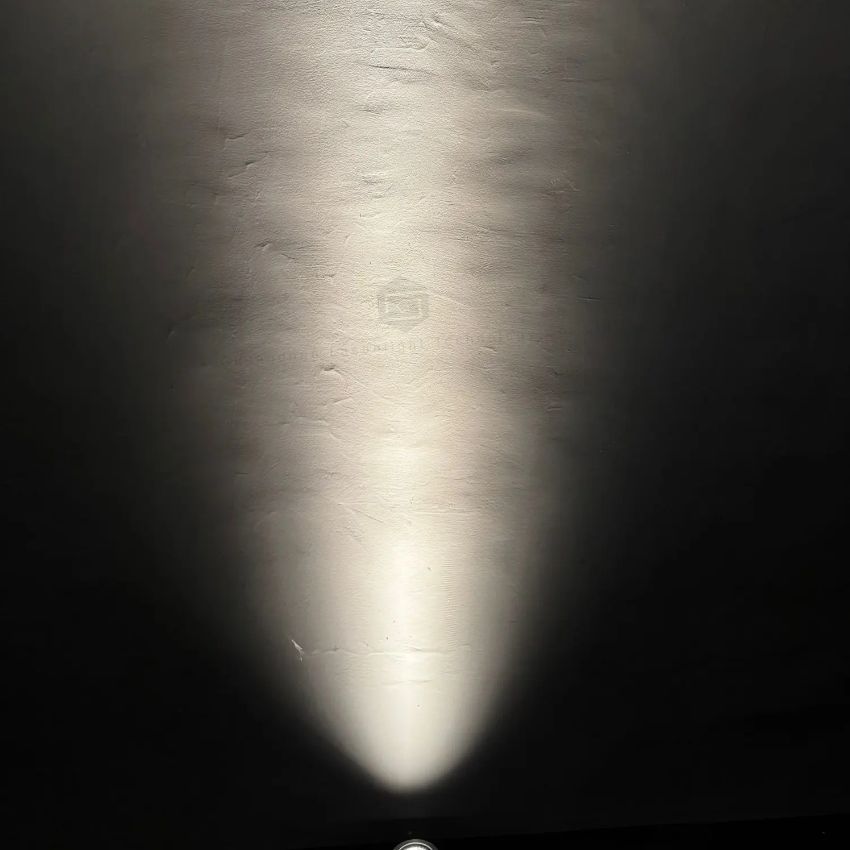

| Beam Angle[θ50%] | 10°/15°/24°/36°/50° | 11.8°/19.5°/32°/40.1° |

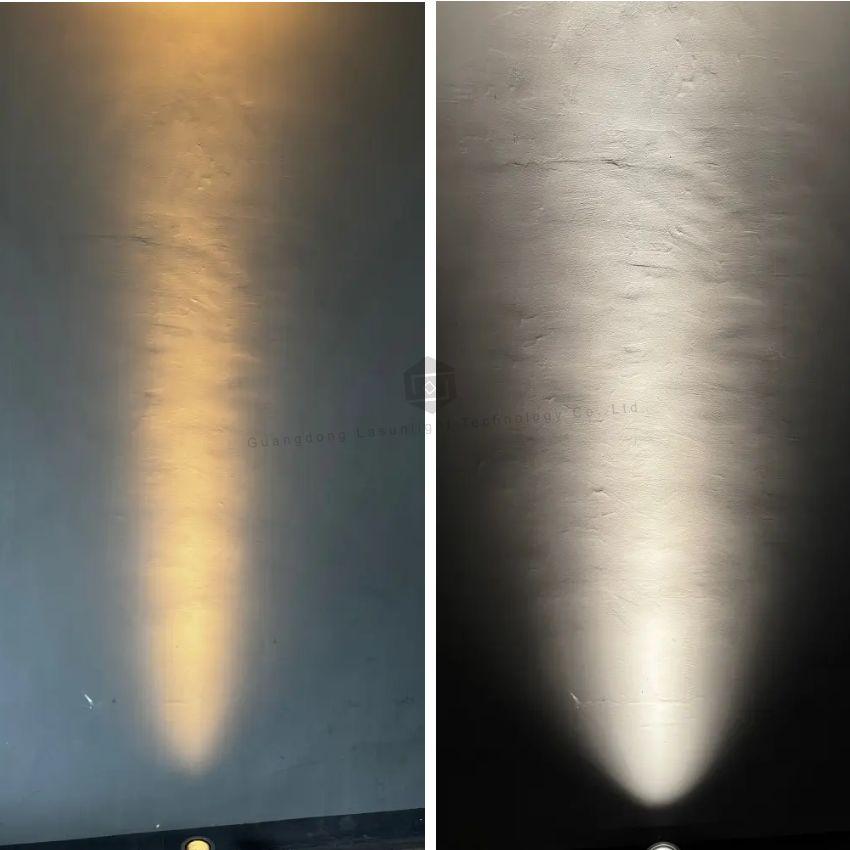

| Color Temperature | 2700K/3000K/3500K/4000K | 2700K/3000K/3500K/4000K |
| CRI | CRI>90 | CRI>90 |
| Body Material | #316 Stainless Steel + Aluminum | #316 Stainless Steel + Aluminum |

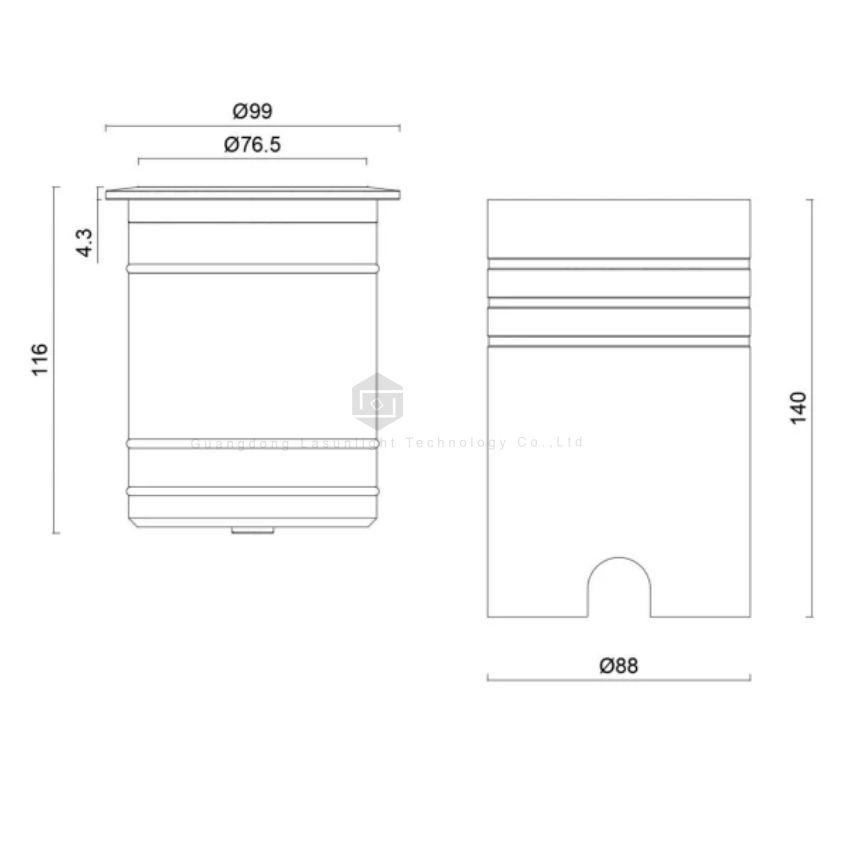

| Product Size[MM] | Ø99mm*144.3mm | Ø99mm*144.3mm |
| Cut-out[MM] | Ø90mm | Ø90mm |
| IP/IK level | IP67/IK10 | IP67/IK10 |
