Antiglare Wallwasher Inground Uplight Lasunlight 2W 3W 5W 7W 10W 12W 15W Aluminium LED Recessed Underground Lights

1.Power(W):1.5W
2.Input Voltage(V):DC24V
3.Dimension:Φ 25*67 mm
4.IP Rating:IP67
5.IK Level:IK07
6.CCT(K):2700K/3000K/3500K/4000K(optional)
7.Beam angle(°): 21°/37.4°/18*41°(optional)
INQUIRY

Product Description

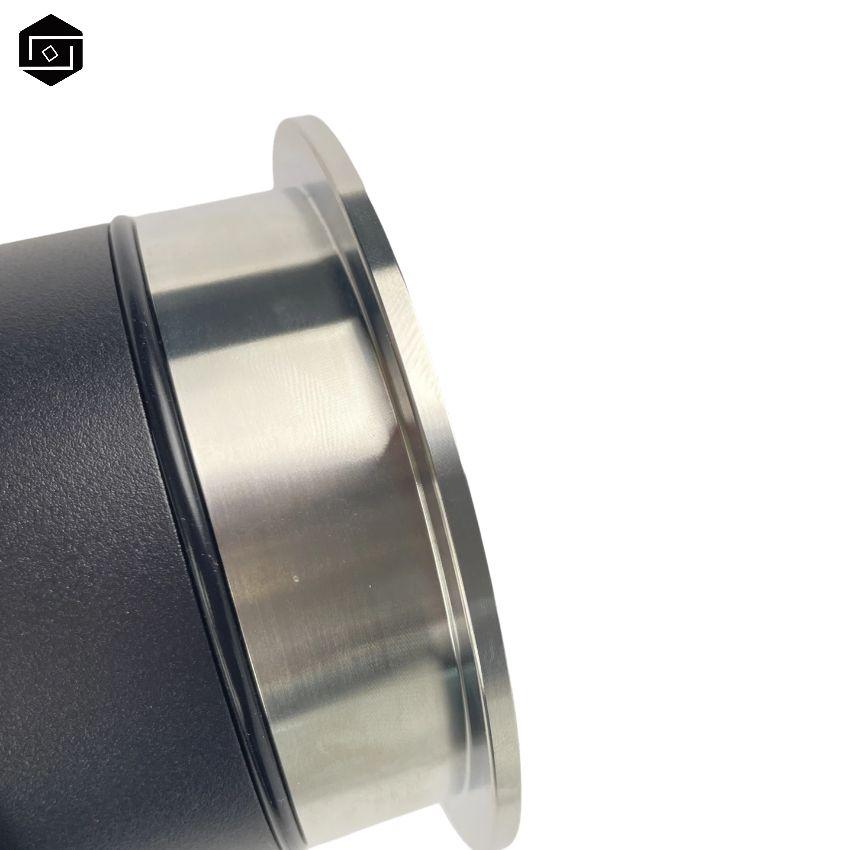

LA-DM11-R25/R50/R75 family is an exciting addition to the Lasunlight product portfolio, The LA-DM11 has been designed for exterior applications that require ultra low glare, with the 316L Pannel and anodised aluminium body, good for heat dissipate and IK10, it offers a kinds of Optional lens, narrow and wide beam. The narrow beam 15° and output 450 lm and 4415 cd, The Narrow beam angle 5°/7°/10°options available.
Color temperature have 2200K/2400K/2700K/3000K/3500K/R/G/B/W/ RGB/RGBW DMX options available, High color rendering index more than 90. Low input votagle DC24V 12V/DC AC and built-in LED Driver options available, ON/OFF,Traic and DALI-1,DALI-2 built-in. Super lowglare solution for a range of outdoor and indoor-rated applications.


LA-DM11-R50	Φ 50*92.7	3.5 W	13.1°/17.2°/25.2°/39.2°	Bridgelux	IK07	DC24V	N	Triac/PWM /0~10V/DALI
LA-DM11-R75	Φ 75*120.3	7 W	7°/10°/15.8°/23.3°/30.9°/40.1°	Bridgelux	IK10	DC24V	N	Triac/PWM /0~10V/DALI
LA-DM11-R25B	Φ 25*67	1.5W	21°/37.4°/15.2*27.5°	LED	IK07	DC24V	N	Triac/PWM /0~10V/DALI
LA-DM11-R50B	Φ 50*92.7	3.5W	13.1°/17.2°/25.2°/39.2°	LED	IK07	DC24V	N	Triac/PWM /0~10V/DALI
LA-DM11-R75B	Φ 75*120.3	7 W	7°/10°/15.8°/23.3°/30.9°/40.1°	Bridgelux	IK10	DC24V	N	Triac/PWM /0~10V/DALI
LA-DM11-R65S	Φ 65*98	5 W	5°/15°/24°/36°/50°	Luminus	IK10	DC24V	N	Triac/PWM /0~10V/DALI
LA-DM11-R65L	Φ 65*184	8W	5°/10°/15°/24°/36°/50°	Bridgelux	IK10	DC24V	N	Triac/PWM /0~10V/DALI
LA-DM11-R25H	Φ 25*67	1.5W	21°/37.4°/15.2*27.5°	LED	IK07	AC220-240V	External	ND
LA-DM11-R50H	Φ 50*128	6 W	13.1°/17.2°/25.2°/39.2°	Bridgelux	IK07	AC220-240V	built-in	ND
LA-DM11-R75H	Φ 75*148	7 W	15.8°/22°/31.5°/42.1°	Bridgelux	IK10	AC220-240V	built-in	ND
LA-DM11-R75H	Φ 75*148	7 .5W	7°	CREE	IK10	AC220-240V	built-in	ND
LA-DM11-R75H	Φ 75*148	9.5 W	15.8°/22°/31.5°/42.1°	Bridgelux	IK10	AC220-240V	built-in	Triac
LA-DM11-R75H	Φ 75*148	8.8 W	7°	CREE	IK10	AC220-240V	built-in	Triac
