Features：
1. The light source of the lamp adopts LED , the light color is pure, and the CRI is more than 90;
2. The lamp panel adopts 316 stainless steel structure and outdoor passivation process.
3. The lamp body is processed by aluminum CNC, and the surface is sprayed with Aksu outdoor paint (double coating process.)
4. A variety of angles are optional, and the illumination is uniform;
5. The light source of the lamp is deeply hidden, and the light cutting angle is 40°.
6. Install anti-glare honeycomb;
7. The contact surface test is less than 40 degrees (cover, glass)
8. The lamp structure is exquisite, suitable for use in various places such as buildings and gardens.
| Item No. | LA-DM11T-R50 | LA-DM11T-R75 | LA-DM15T-R100 |
| Input Current | Constant Voltage DC24V | Constant Voltage DC24V | Constant Voltage DC24V |
| Driver | DC24V ( Support dimming ) | DC24V ( Support dimming ) | DC24V ( Support dimming ) |
| Power(Watts) | 2W | 5W | 7W |
| Power suppy unit | Integated/Triac/PWM/0～10V/DALI | ||
| Beam Angle［θ50%］ | 19.9°/28°/37.6° | 15.5°/29°/43° | 12.7°/16.3°/30.8°/45.4° |
| Color Temperature | 2700K/3000K/3500K/4000K | 2700K/3000K/3500K/4000K | 2700K/3000K/3500K/4000K |
| Outgoing line ［CM］ | 100 CM | 100 CM | 100 CM |
| CRI | CRI>90 | CRI>90 | CRI>90 |
| Body Material | #316L Stainless Steel + Aluminum | ||

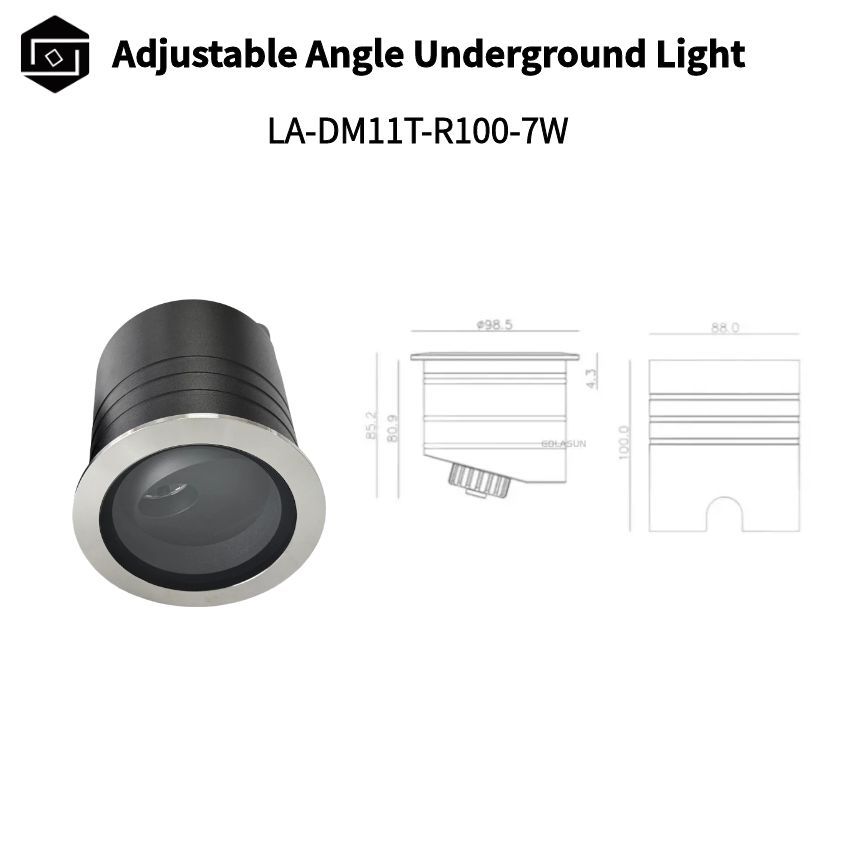

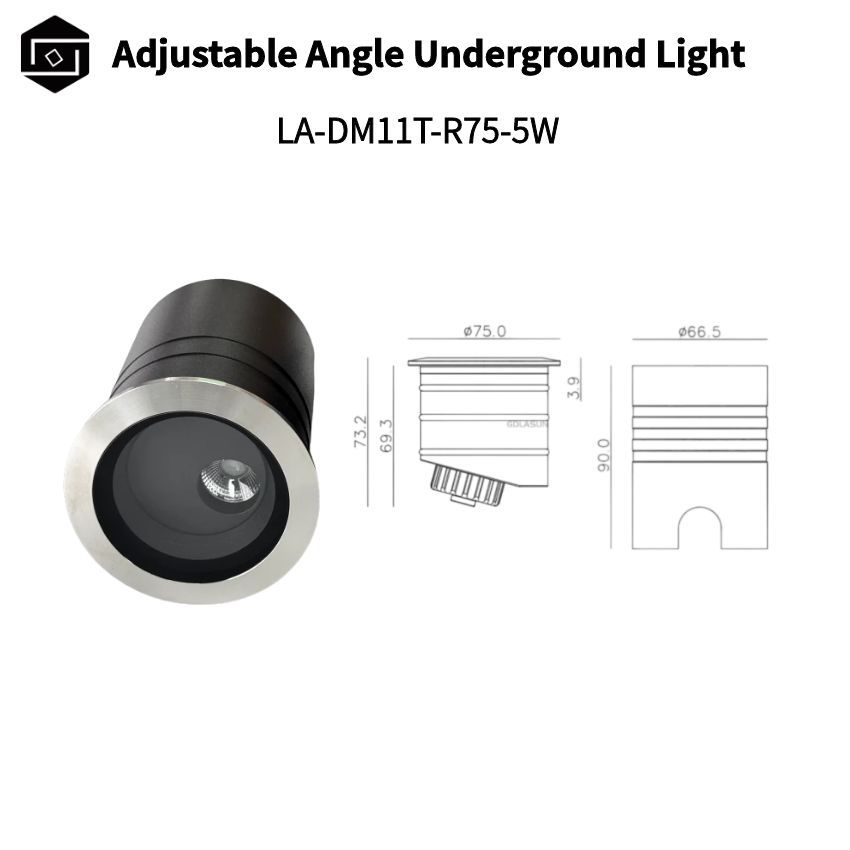

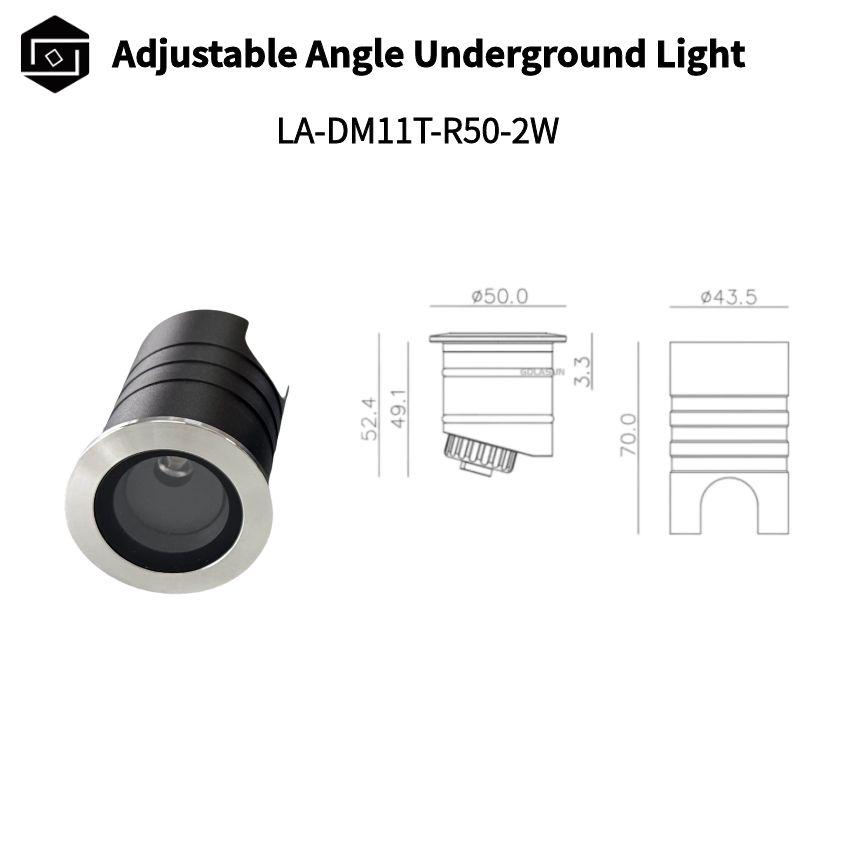

| Product Size［MM］ | Ø50mm*73.3mm | Ø75mm*93.9mm | Ø98.5mm*104.3mm |
| Cut-out［MM］ | Ø45mm | Ø68mm | Ø90mm |
| IP/IK level | IP67/IK10 | IP67/IK10 | IP67/IK10 |
