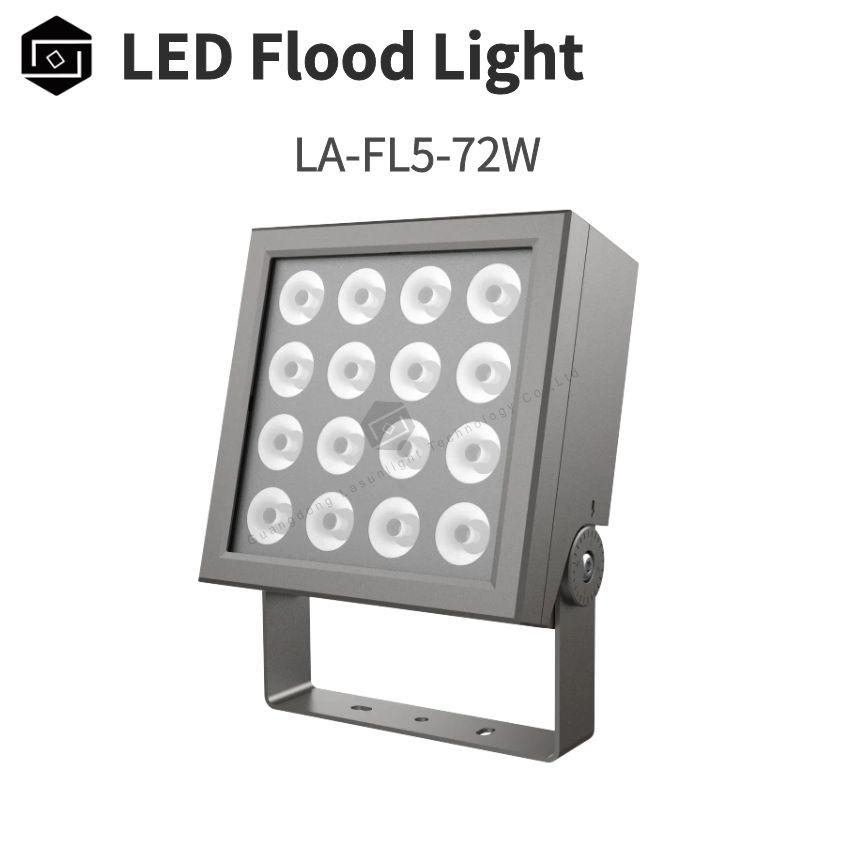

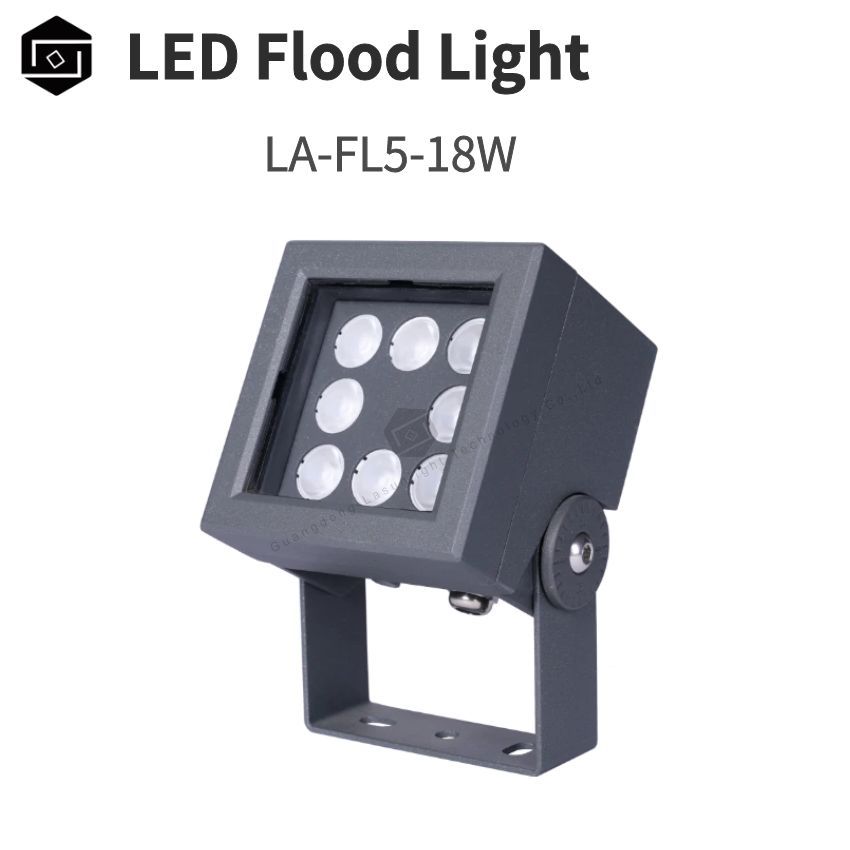

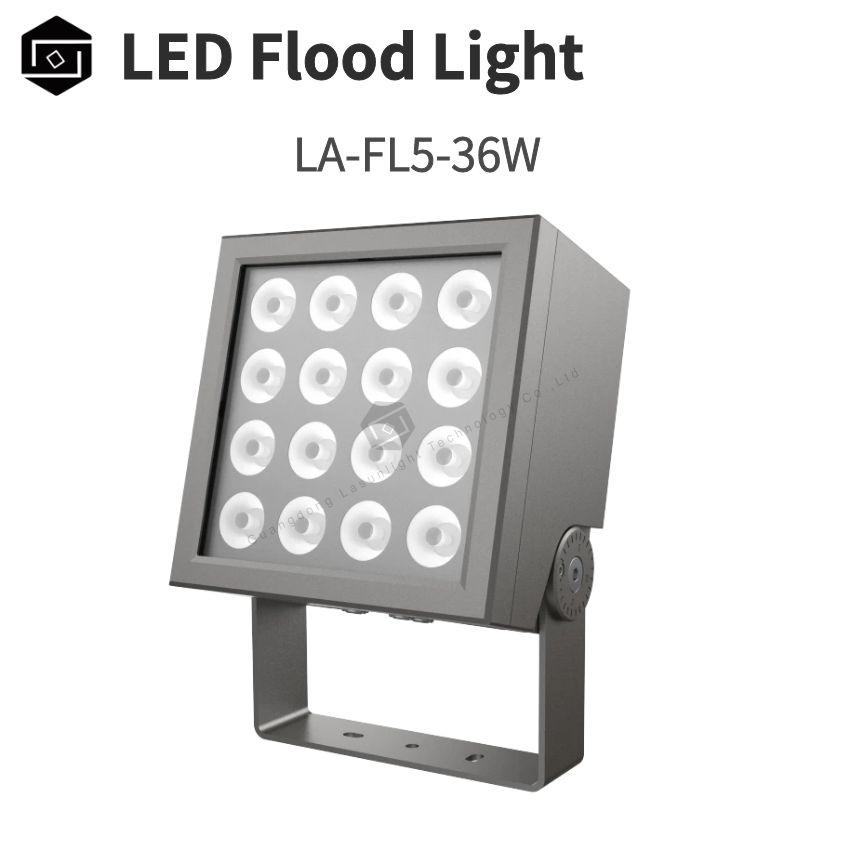

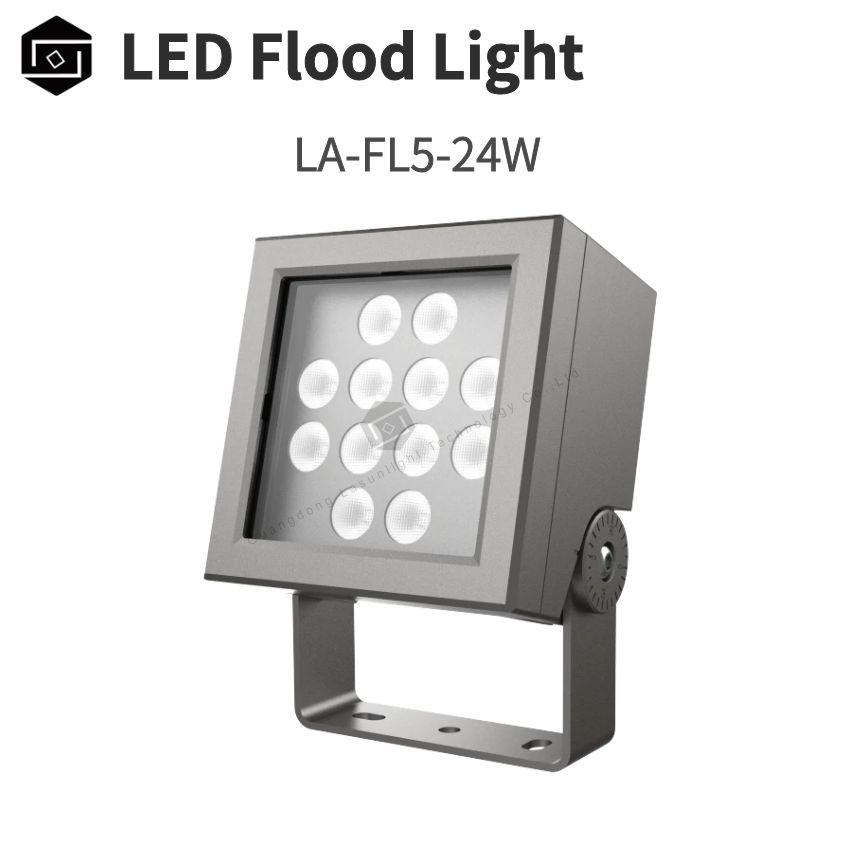

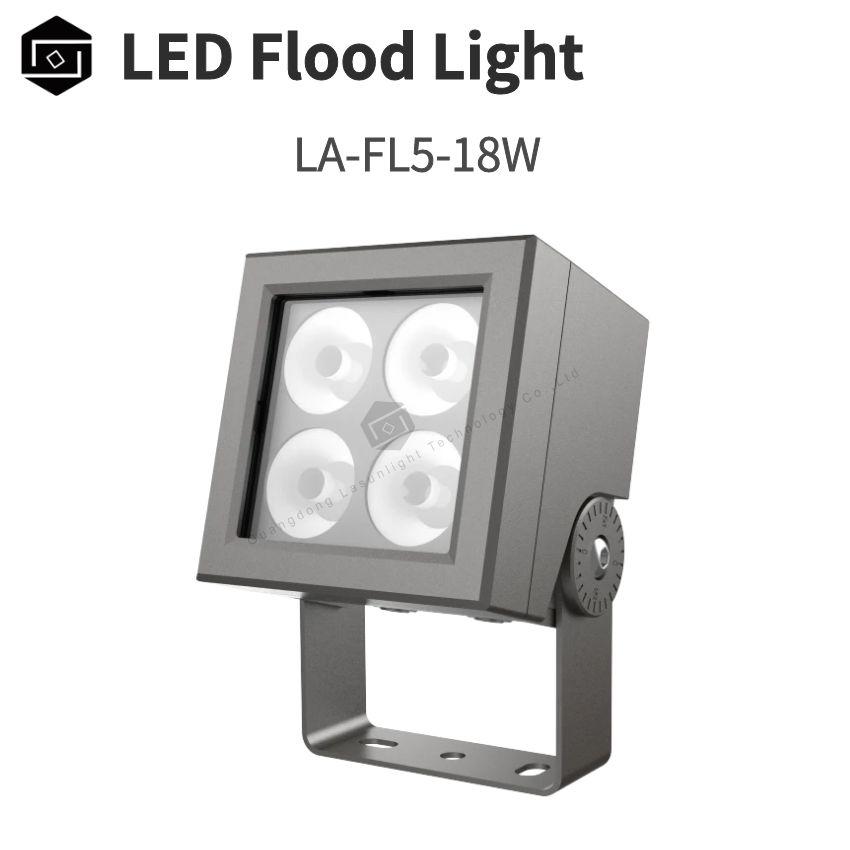

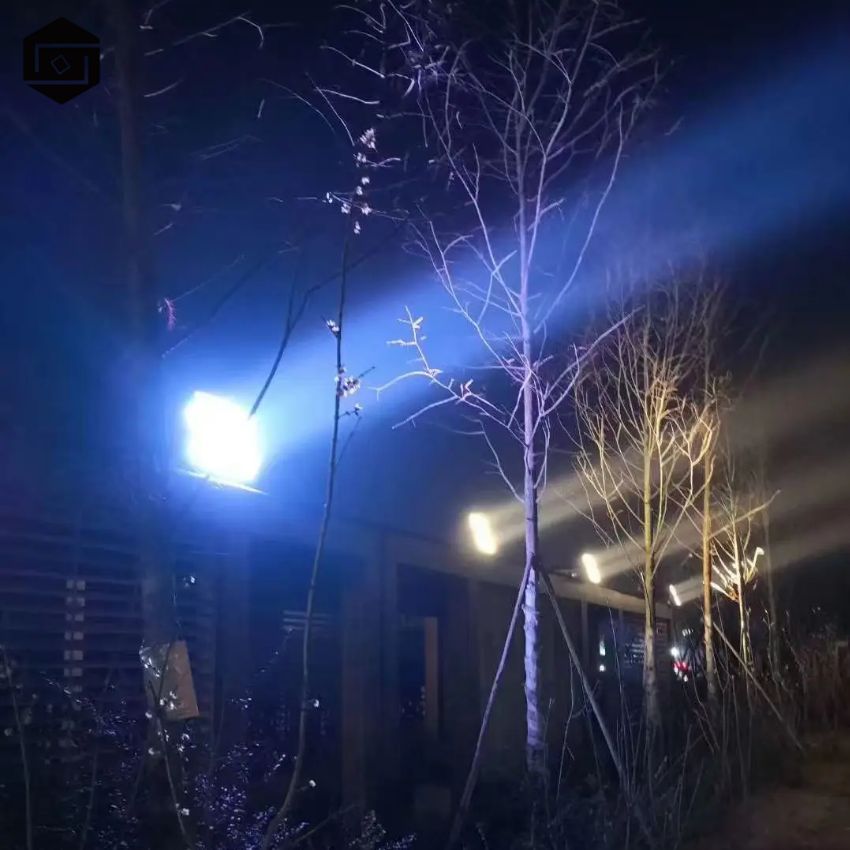

Square modern design 18W 24W 36W 48W 72W 100W outdoor LED floodlights DC24V RGB RGBW 4IN1 waterproof IP66 garden lights building facade lighting

Item No. ：LA-FL5-105
Input Voltage：DC24V/AC85V-265V
Power(Watts) ：18W
Control mode ：ON/OFF/DMX512
Beam Angle［θ50%］：10°/15°/25°/30°/45°/60°
Color Temperature ：2200K/2700K/3000K/3500K/4000K/RGBW/4 IN 1
CRI：CRI>80
Body Material ：Die-cast aluminum

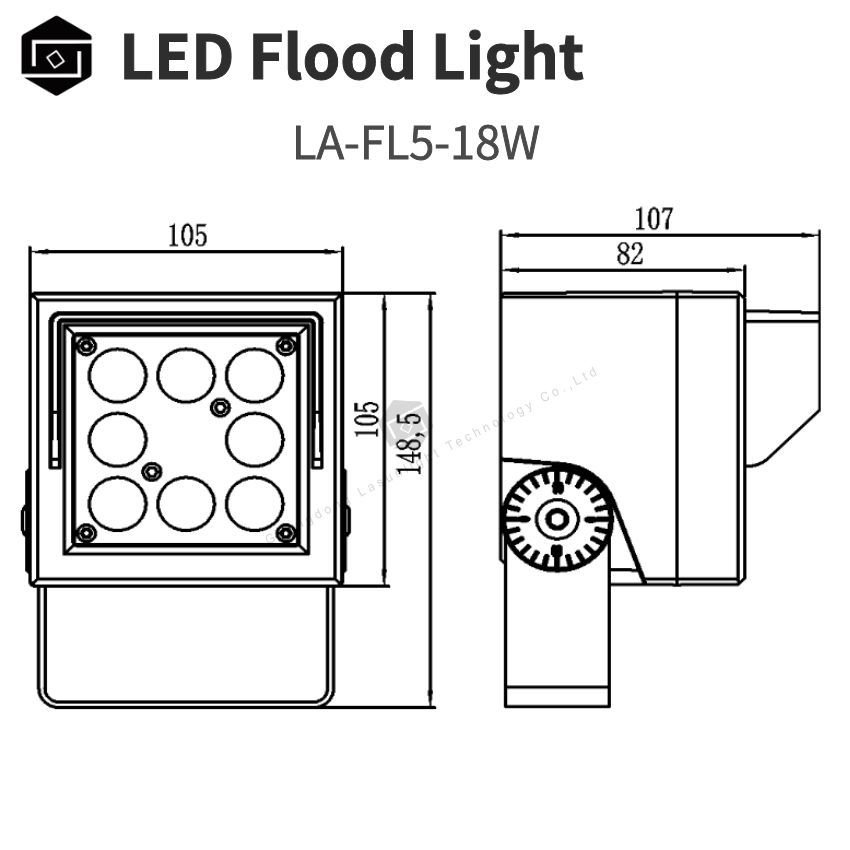

Product Size［MM］：W105*107*148MM
IP level：IP66
INQUIRY

Features:

1.Adopts die-casting process and high-quality aluminum material, with excellent heat dissipation performance.

2.Equipped with ultra-white tempered glass, which has high light transmittance; combined with PMMA optical lens, it delivers outstanding light efficiency and performance.

3.The design integrates modernity and practicality, with a waterproof structure to protect internal electronic components.

4.Supports multiple control methods, such as switch control and DMX512 control.

5.Offers a variety of beam angles, including 10°/15°/25°/30°/45°/60° for option.

6.Color temperatures available: 2200K/2700K/3000K/3500K/4000K/RGBW/4 IN 1.

Product Parameters

Item No.	LA-FL5-105	LA-FL5-130	LA-FL5-160	LA-FL5-185	LA-FL5-220	LA-FL5-220L
Input Voltage	DC24V/AC85V-265V
Driver	built-in	built-in	built-in	built-in	built-in	built-in
Power(Watts)	18W	24W	30W/36W	48W	72W	100W
Control mode	ON/OFF/DMX512
Beam Angle［θ50%］	10°/15°/25°/30°/45°/60°
Color Temperature	2200K/2700K/3000K/3500K/4000K/RGBW/4 IN 1
CRI	CRI>80	CRI>80	CRI>80	CRI>80	CRI>80	CRI>80
Body Material	Die-cast aluminum
Product Size［MM］	W105107148	W130107178	W16082218	W185120247	W220125291	W220x220x307
