Features：

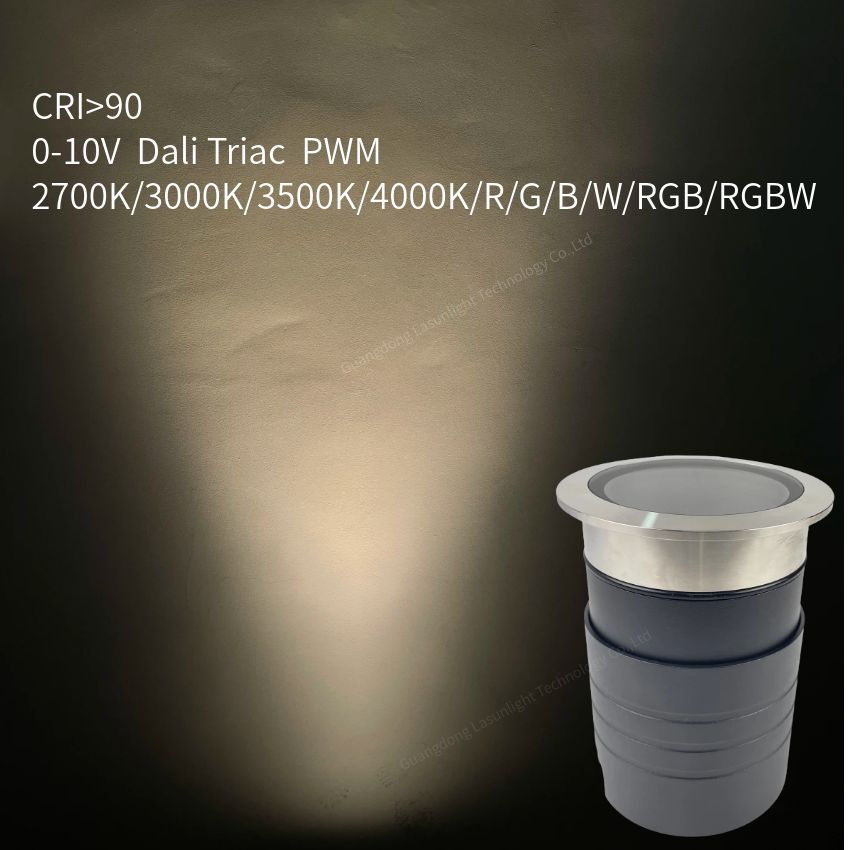

1. The light source of the lamp adopts OSRAM chip, the light color is pure, and the CRI is more than 90;

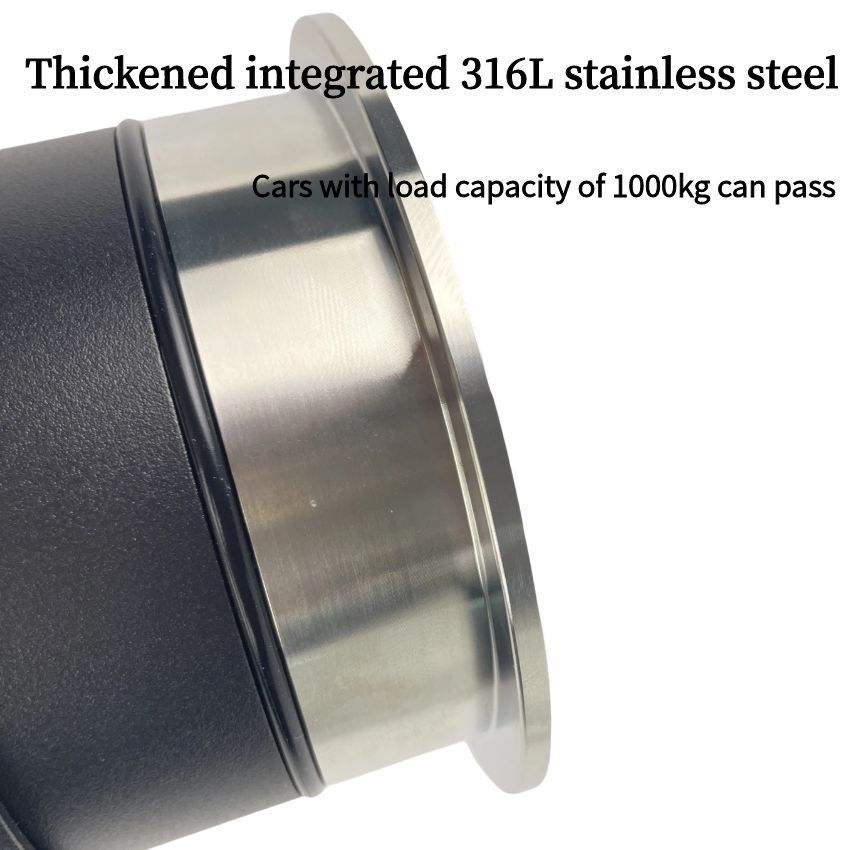

2. Thickened integrated 316L stainless steel of the panel.
3. The lamp body is processed by aluminum CNC, and the surface is sprayed with Aksu outdoor paint (double coating process.)
4. A variety of angles are optional, and the illumination is uniform;
5. The light source of the lamp is deeply hidden, and the light cutting angle is 40°.
6. Install anti-glare honeycomb;
7. The contact surface test is less than 40 degrees (cover, glass)
6. Drive Over 2000 Kgs can pass,IK10
8. The lamp structure is exquisite, suitable for use in various places such as buildings and gardens.
| Item No. | LA-DM15L-R98 | ||||||
| Input Current | Constant Voltage DC24V | ||||||
| Driver | DC24V ( Support dimming ) | ||||||
| Power(Watts) | 11W/12W/13W/14W/15W | ||||||
| Power suppy unit | ¨Integated ¨Triac/PWM ¨0～10V/DALI | ||||||
| Light Source Brand/Code | OSRAM | ||||||
| Beam Angle［θ50%］ | 7.5°/11.1°/20°/33°/36°/12 *44°/11.3°偏光2.5° | ||||||
| Color Temperature | 2700K/3000K/3500K/4000K | ||||||
| Wire connection way | 2*0.5 rubber cable harness end | ||||||
| Outgoing line ［CM］ | 100 CM | ||||||
| Finishing | MC01 | ||||||
| Body Material | #316 Stainless Steel + Aluminum | ||||||
| Product Size［MM］ | Ø98*104.5 | ||||||
| Cut-out［MM］ | Ø90 | ||||||
| IP/IK level IP/IK | IP67/IK10 | ||||||
