Features：
1.The light source of the luminaire uses OSRAM, with pure light color and a Color Rendering Index (CRI) greater than 90;
2.The lamp panel is made of 316L stainless steel structure and undergoes outdoor passivation treatment;
3.The lamp body is processed by aluminum CNC, and the surface is sprayed with AkzoNobel outdoor special paint (double coating process);
4.Multiple angles are available, with uniform illumination.

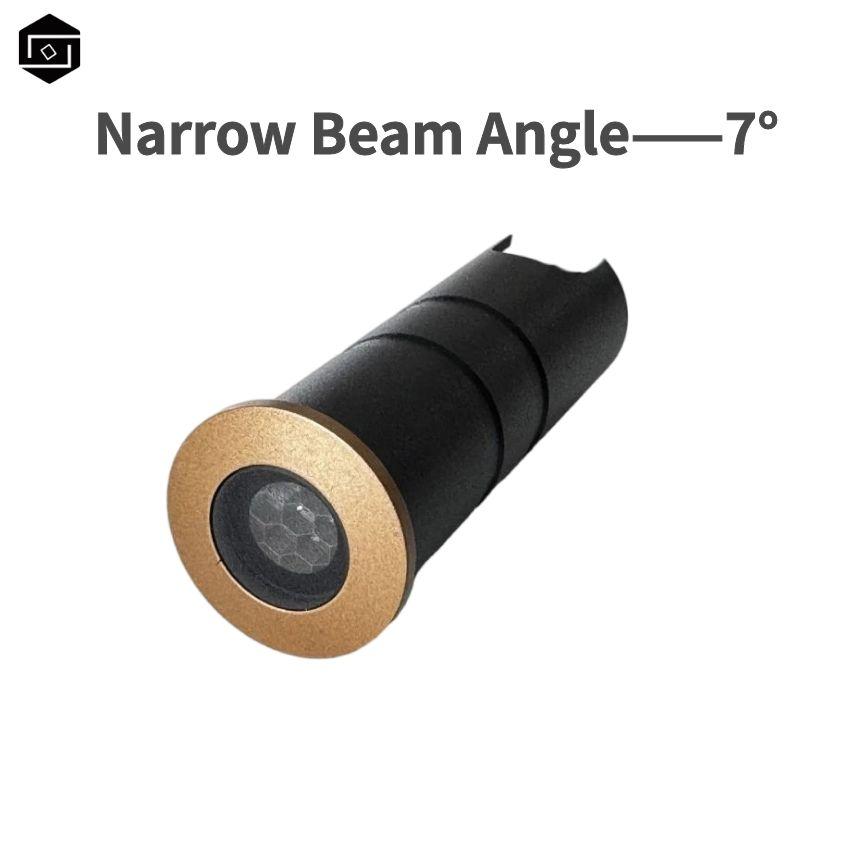

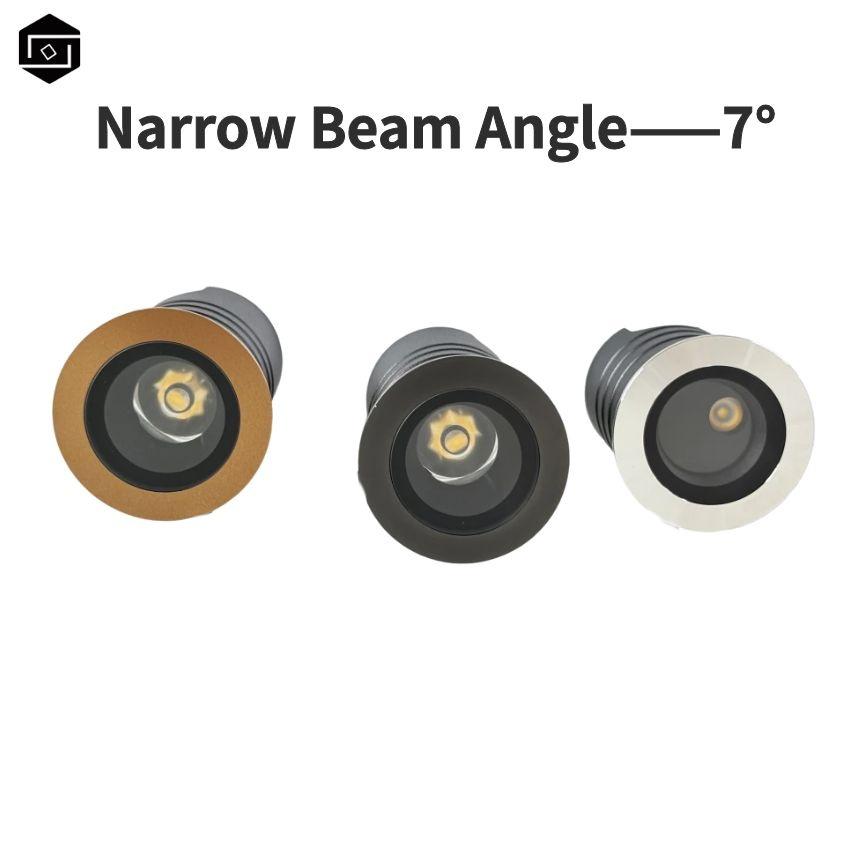

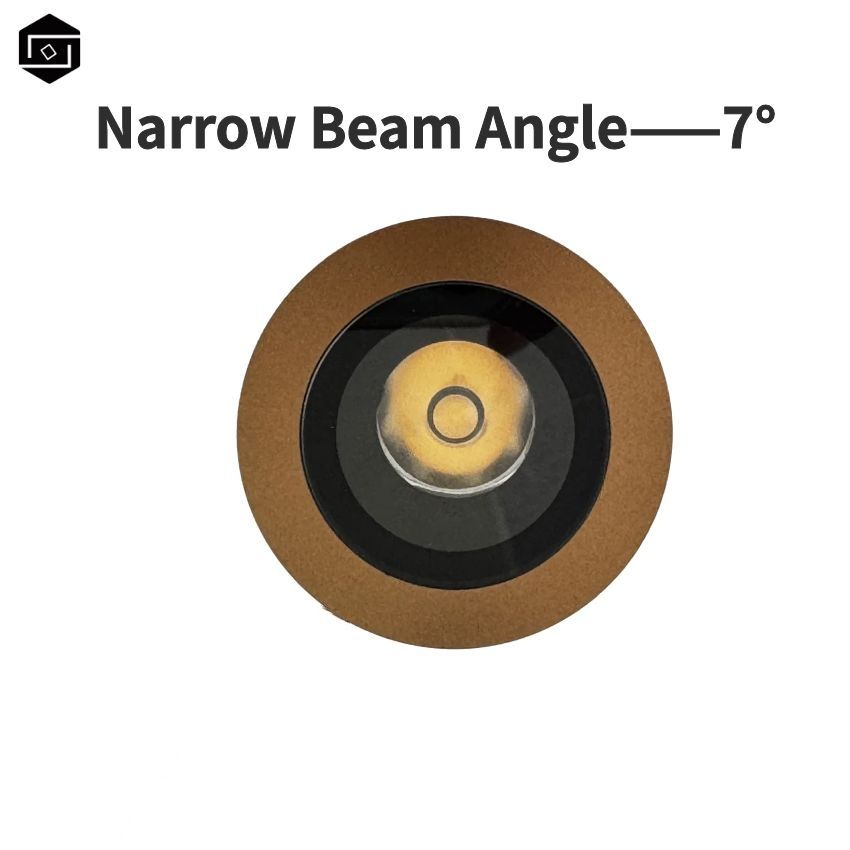

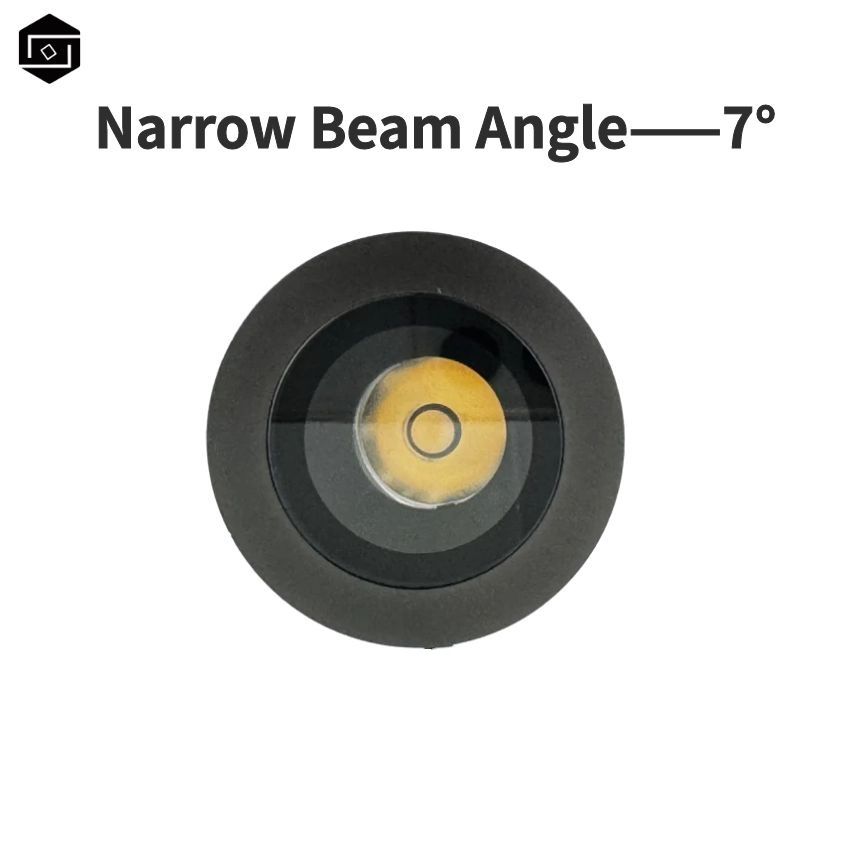

5.Narrow beam angle of 7°;

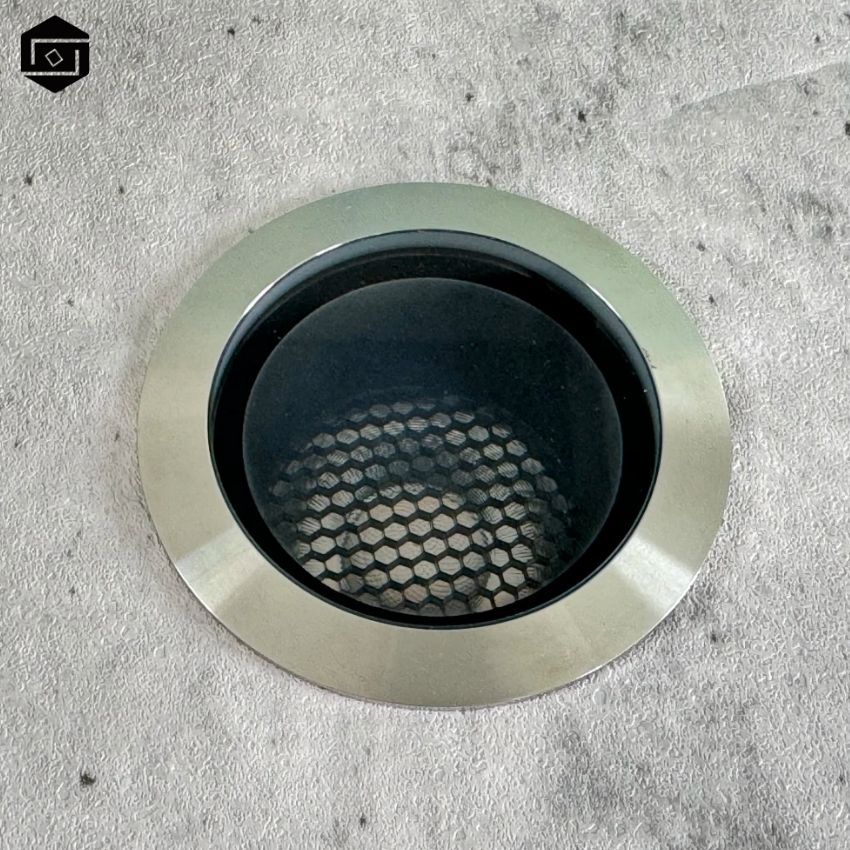

6.Equipped with an anti-glare honeycomb grid;
7.The temperature of the contact surface test (covering parts, glass) is lower than 40 degrees;
8.The luminaire has an exquisite structure and is suitable for various places such as buildings and gardens.
Item No. | LA-DM11-R75 Narrow beam 7D |
| Input Current | Constant Voltage DC24V |
| Driver | DC24V ( Support dimming ) |
| Power(Watts) | 7W |
| Power suppy unit | Integated /Triac/PWM/0～10V/DALI |
| Beam Angle［θ50%］ | 7° |
| Color Temperature | 2700K/3000K/3500K/4000K |
| Outgoing line ［CM］ | 100 CM |
| CRI | CRI>90 |
| Body Material | #316L Stainless Steel + Aluminum |

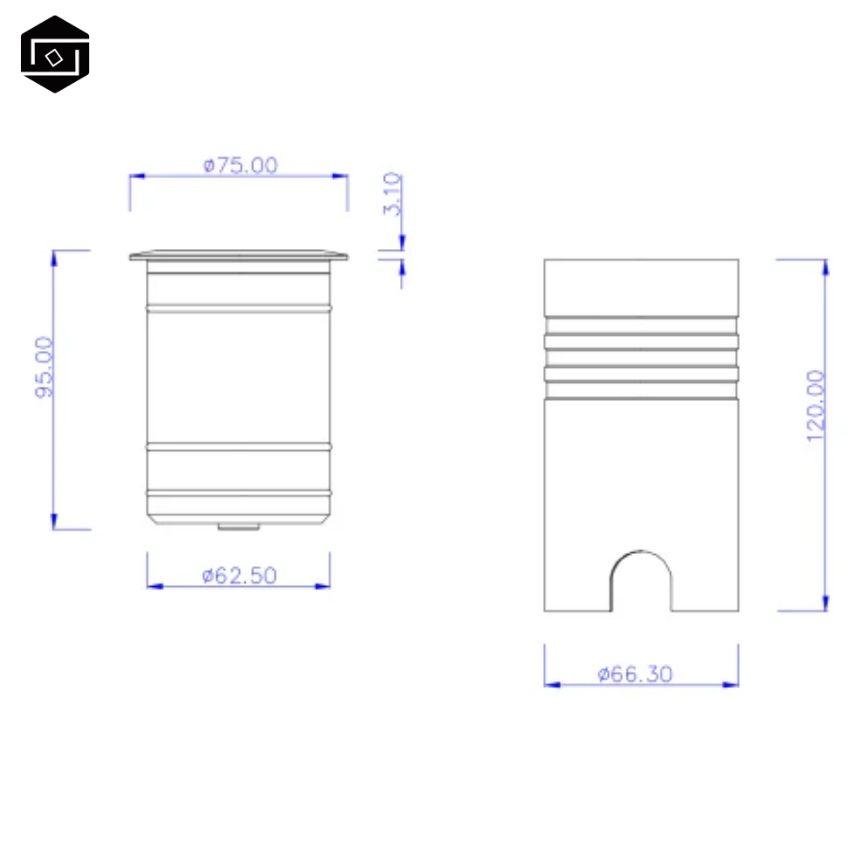

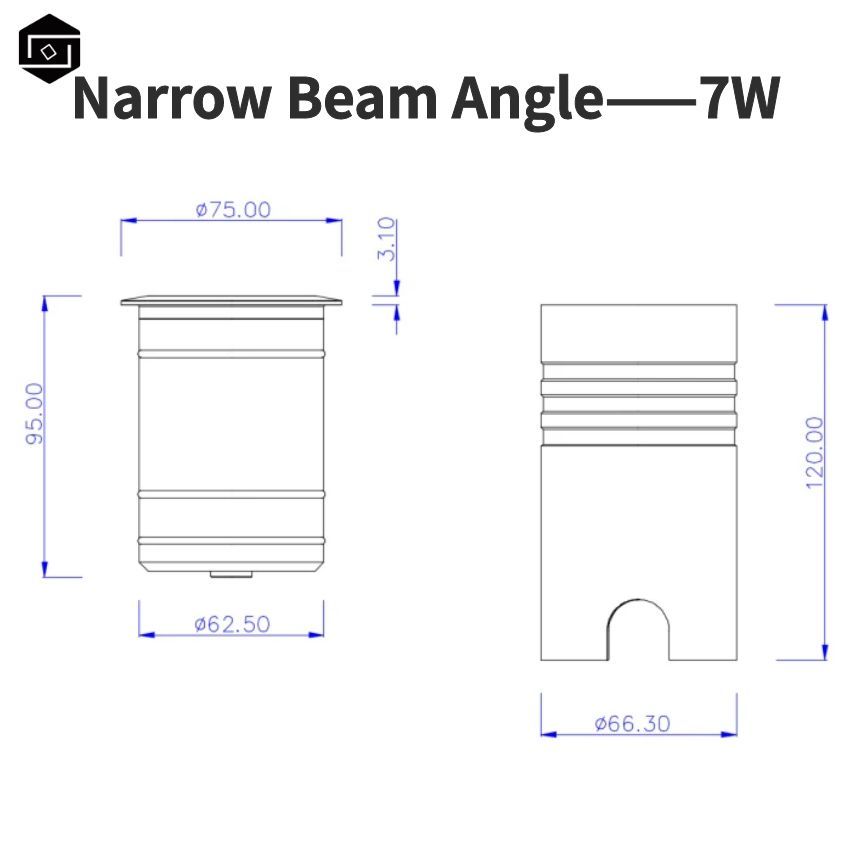

| Product Size［MM］ | Ø75*123.1mm |
| Cut-out［MM］ | Ø68mm |
| IP/IK level | IP67/IK10 |
