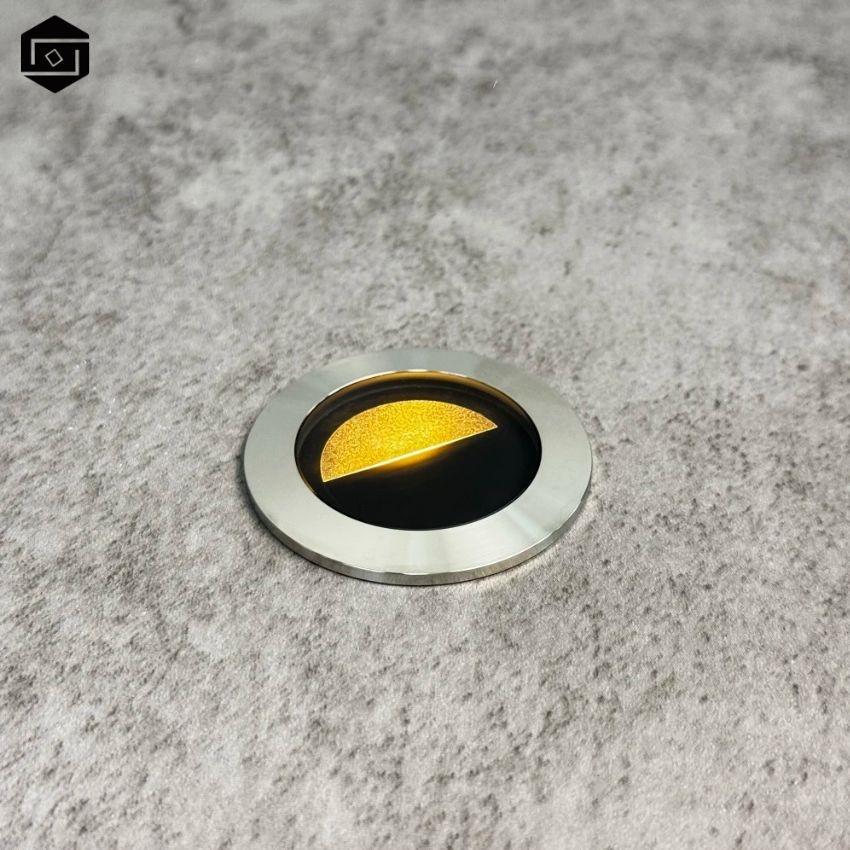

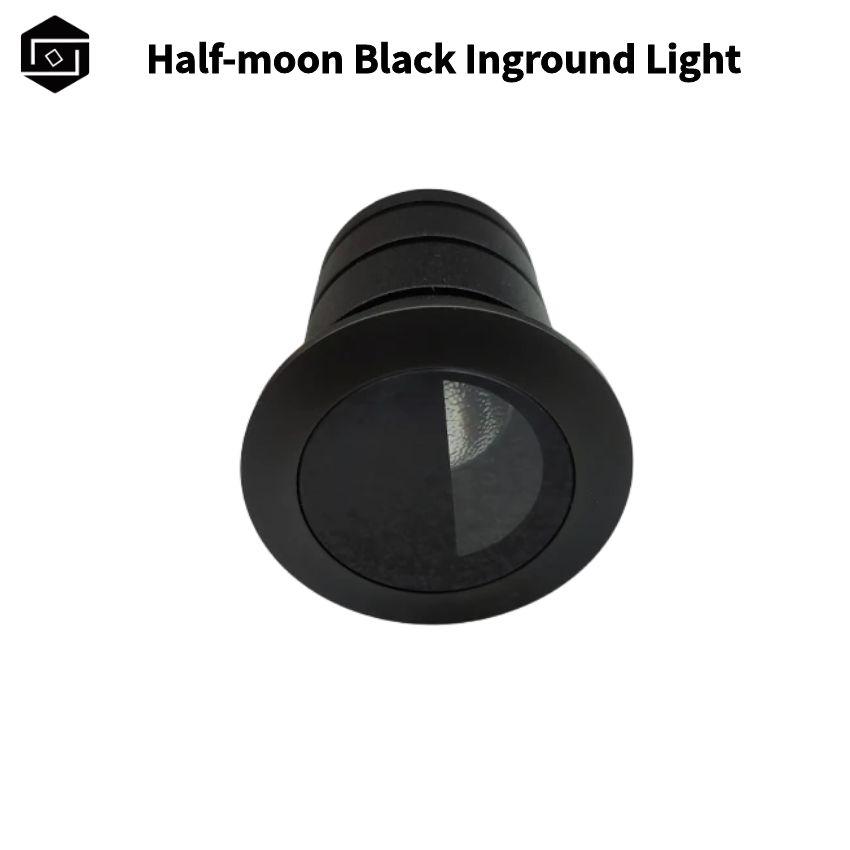

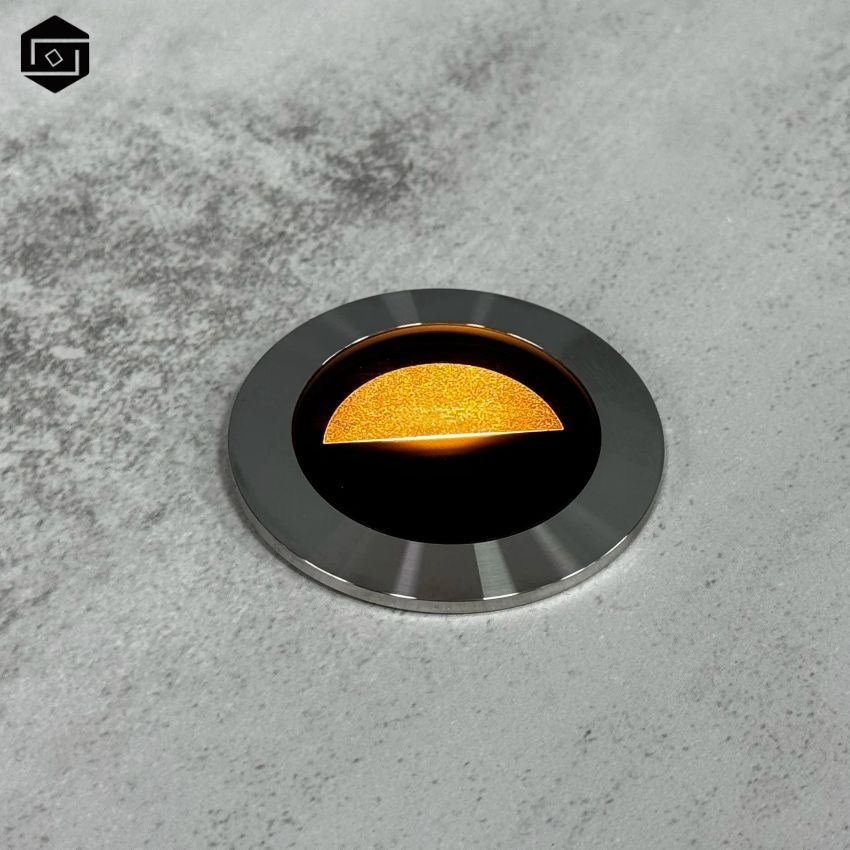

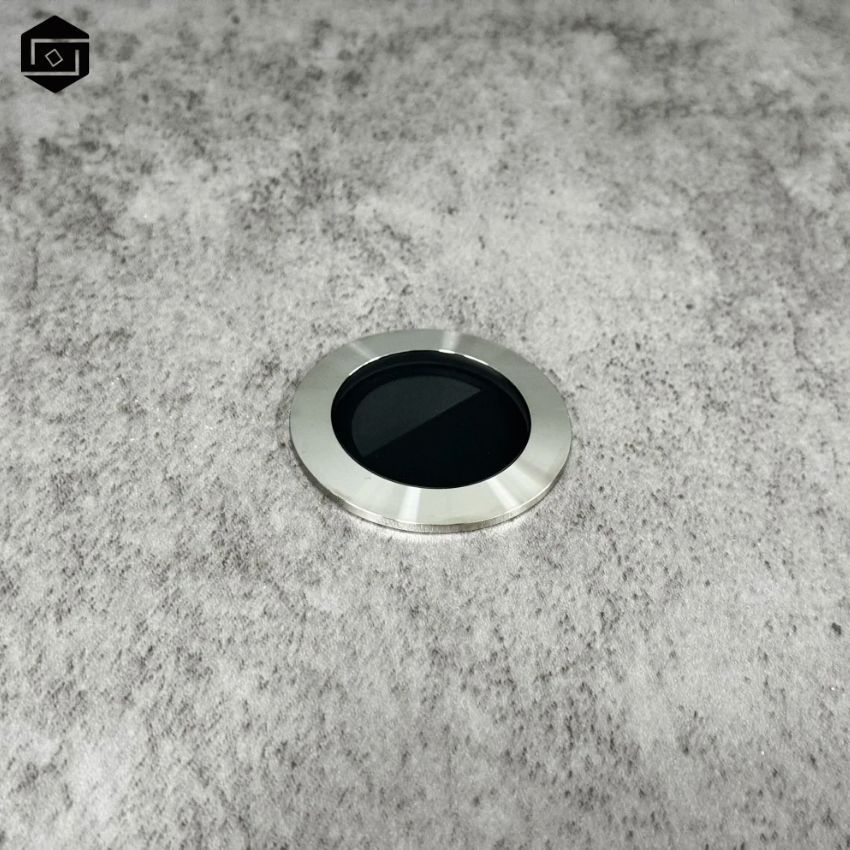

LED outdoor waterproof underground light, IP67 DC24 IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting

  • LED outdoor waterproof underground light, IP67 DC24  IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting
  • LED outdoor waterproof underground light, IP67 DC24  IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting
  • LED outdoor waterproof underground light, IP67 DC24  IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting
  • LED outdoor waterproof underground light, IP67 DC24  IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting
  • LED outdoor waterproof underground light, IP67 DC24  IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting
LED outdoor waterproof underground light, IP67 DC24  IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting LED outdoor waterproof underground light, IP67 DC24  IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting LED outdoor waterproof underground light, IP67 DC24  IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting LED outdoor waterproof underground light, IP67 DC24  IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting LED outdoor waterproof underground light, IP67 DC24  IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting

LED outdoor waterproof underground light, IP67 DC24 IK07 3W 7° 316L stainless steel underground light corridor light hotel lighting

  • Item No.:LA-DM11-R50B Narrow beam 7D
    Input Current:Constant Voltage DC24V
    Support power dimming:Tric/PWM, 0~10V/DALI
    Power(Watts):3W
    Beam Angle[θ50%]:7°
    Color Temperature:2700K/3000K/3500K/4000K (optional)
    CRI:CRI>90
    Body Material:#316L Stainless steel+Aluminium+ Embedded parts Aluminium + Ultra -transparent glass

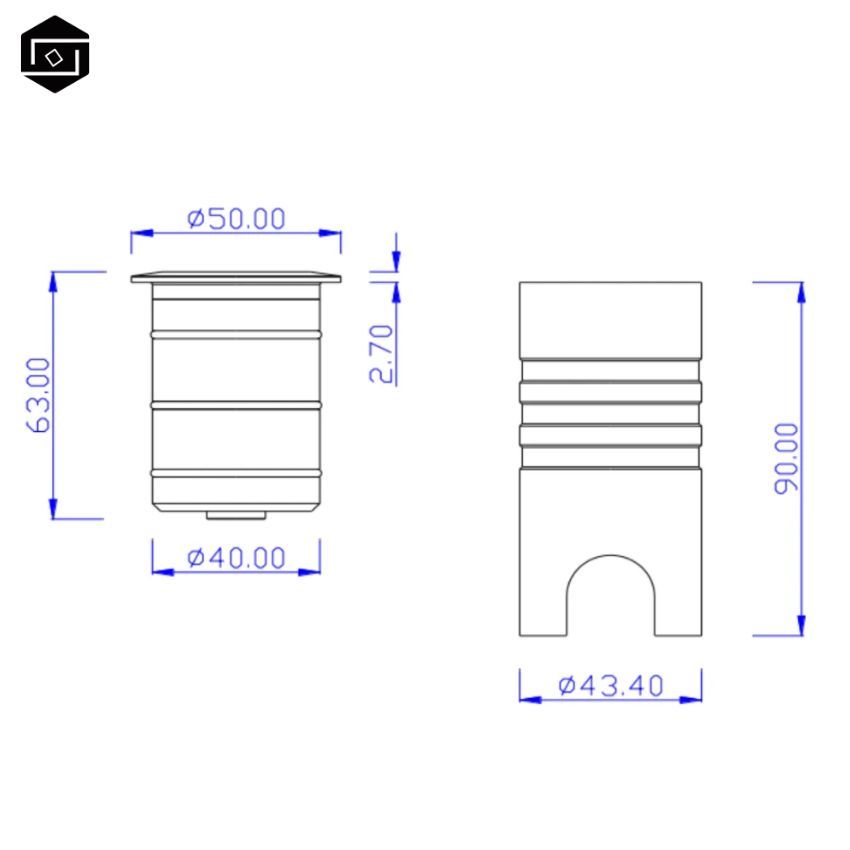

    Product Size[MM]:Ø50*92.7mm
    Cut-out[MM]:Ø45mm
    IP/IK level:IP67/IK07
  • INQUIRY

Characteristic Specifications:
1.The light source of the lamp adopts CREE chip, with pure light color and a Color Rendering Index (CRI) greater than 90.
2.The panel is made of thickened integrally formed 316L stainless steel.
3.The lamp body is processed by aluminum CNC, and the surface is sprayed with AkzoNobel outdoor special paint (double coating process).
4.The light source of the lamp features a deeply hidden design with a luminous angle of 7°.
5.Equipped with an anti-glare honeycomb grid.
6.The face cover is available in silver, black, gold, etc.
7.The lamp has an exquisite structure and is suitable for various places such as buildings and gardens.



Item No.
LA-DM11-R50B Narrow beam
Input Current:Constant Voltage DC24V
Support power dimming:Tric/PWM, 0~10V/DALI
Power(Watts):3W
Beam Angle[θ50%]:
Color Temperature:2700K/3000K/3500K/4000K (optional)
CRI:CRI>90
Body Material:#316L Stainless steel+Aluminium+ Embedded parts Aluminium + Ultra -transparent glass
Product Size[MM]:Ø50*92.7mm
Cut-out[MM]:Ø45mm
IP/IK level:IP67/IK07
