LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light

  • LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light
  • LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light
  • LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light
  • LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light
  • LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light
LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light

LED outdoor new 10W waterproof IP67 underground light black edge electroplating inground light

  • Item No.:LA-DM15-R98
    Power(Watts):9W/10W
    Beam Angle[θ50%]:7.5°/11.1°/20°/33°/36°/12*44°/11.3°
    Color Temperature:2700K/3000K/3500K/4000K
    Outgoing line [CM]:100 CM
    Body Material:#316 Stainless Steel + Aluminum
    Product Size[MM]:Ø98*84
    Cut-out[MM]:Ø90
    IP/IK level:IP67/IK10
  • INQUIRY

Features:

1. The light source of the lamp adopts OSRAM  chip, the light color is pure, and the CRI is more than 90;

2.  Thickened integrated 316L stainless steel of the panel.

3. The lamp body is processed by aluminum CNC, and the surface is sprayed with Aksu outdoor paint (double coating process.)

4. A variety of angles are optional, and the illumination is uniform;

5. The light source of the lamp is deeply hidden, and the light cutting angle is 40°.

6. Install anti-glare honeycomb;

7. The contact surface test is less than 40 degrees (cover, glass)

6. Drive Over 2000 Kgs can pass,IK10

8. The lamp structure is exquisite, suitable for use in various places such as buildings and gardens.

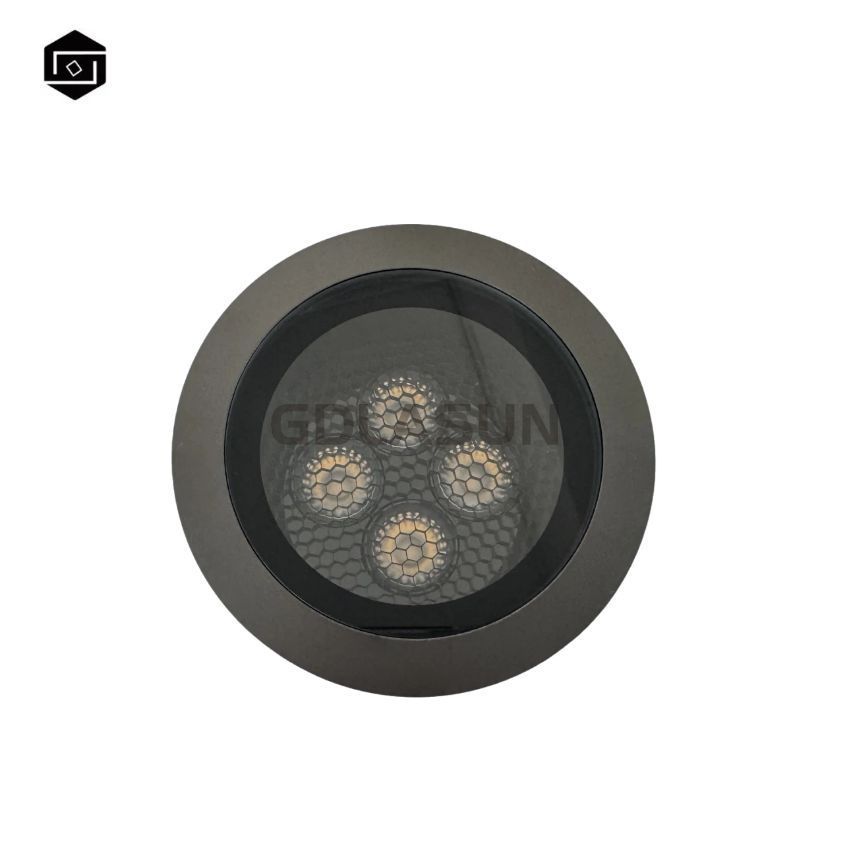

LA-DM15-R98 (3).jpg


Product Parameters

Item No.LA-DM15-R98
Input CurrentConstant Voltage DC24V
DriverDC24V ( Support dimming )
Power(Watts)9W/10W
Power suppy unit

¨Integated

¨Triac/PWM ¨0~10V/DALI

Beam Angle[θ50%]

7.5°/11.1°/20°/33°/36°/12

*44°/11.3° polarized light, 2.5°

Color Temperature2700K/3000K/3500K/4000K
Body Material#316 Stainless Steel + Aluminum
Product Size[MM]Ø98mm*84mm
IP/IK levelIP67/IK10

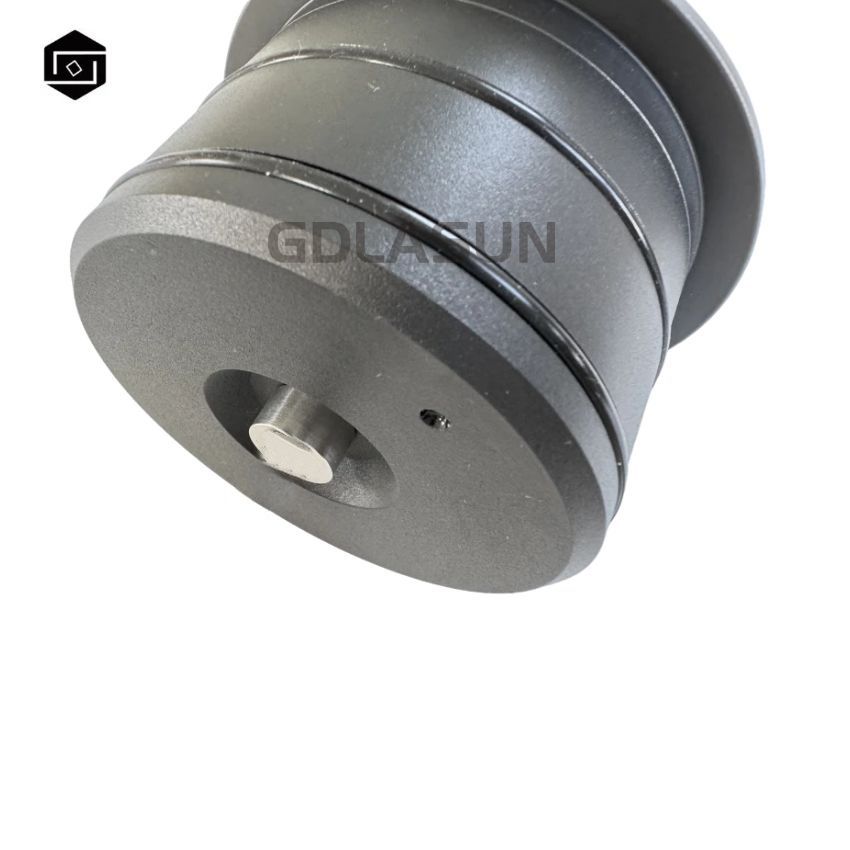

LA-DM15-R98 (1).jpgLA-DM15-R98 (5).jpg

Application Scenario

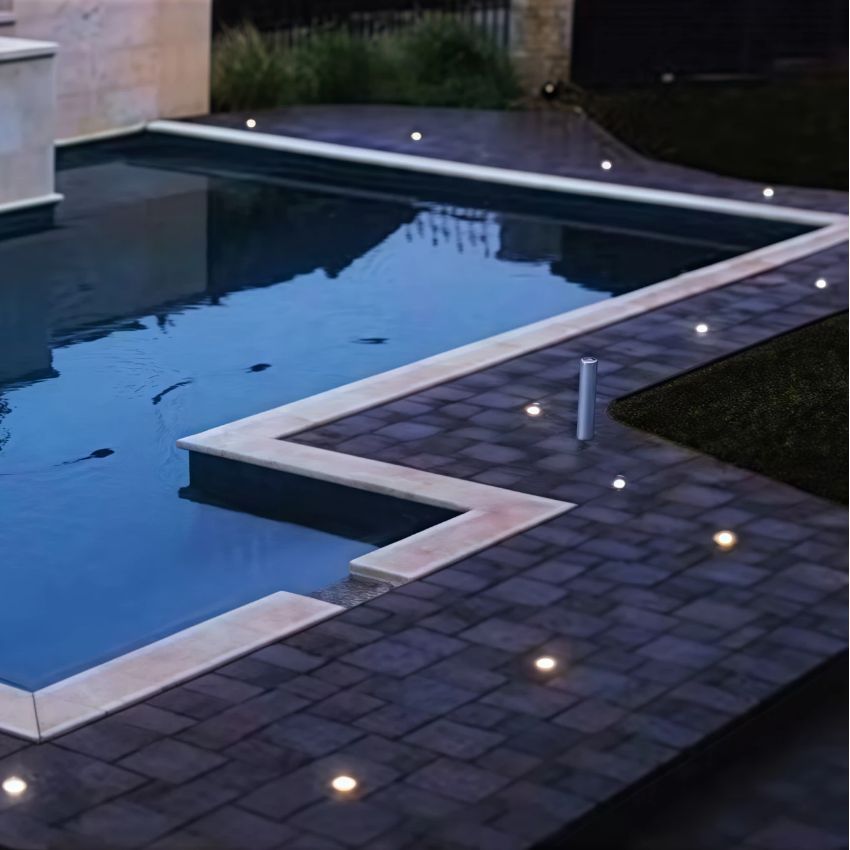

效果图 (1).jpg
