Guangdong Lasunlight Technology Co.,Ltd.
Features：
1. The light source of the lamp adopts OSRAM chip, the light color is pure, and the CRI is more than 90;
2. The lamp body adopts aluminum CNC machining + aluminum radiator structure, the surface is sprayed with Aksu outdoor paint, and the double-layer coating process.
3. Various angles to choose from, uniform illumination
4. The light source of the lamp is deeply hidden, and the cut-off angle is 40°;

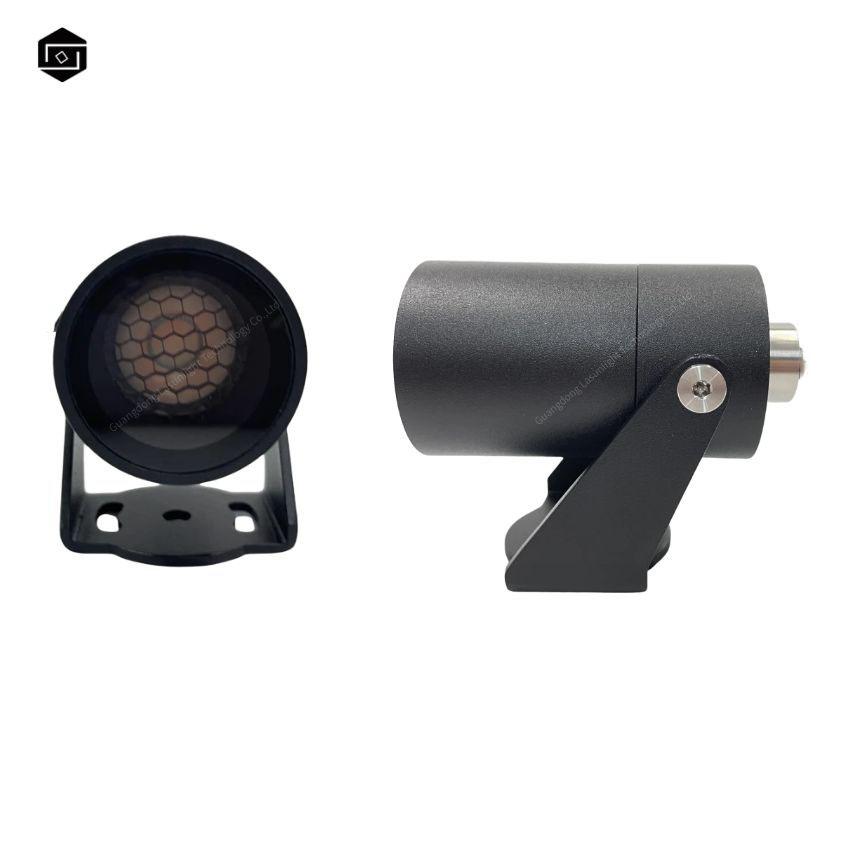

5. Install anti-glare honeycomb;

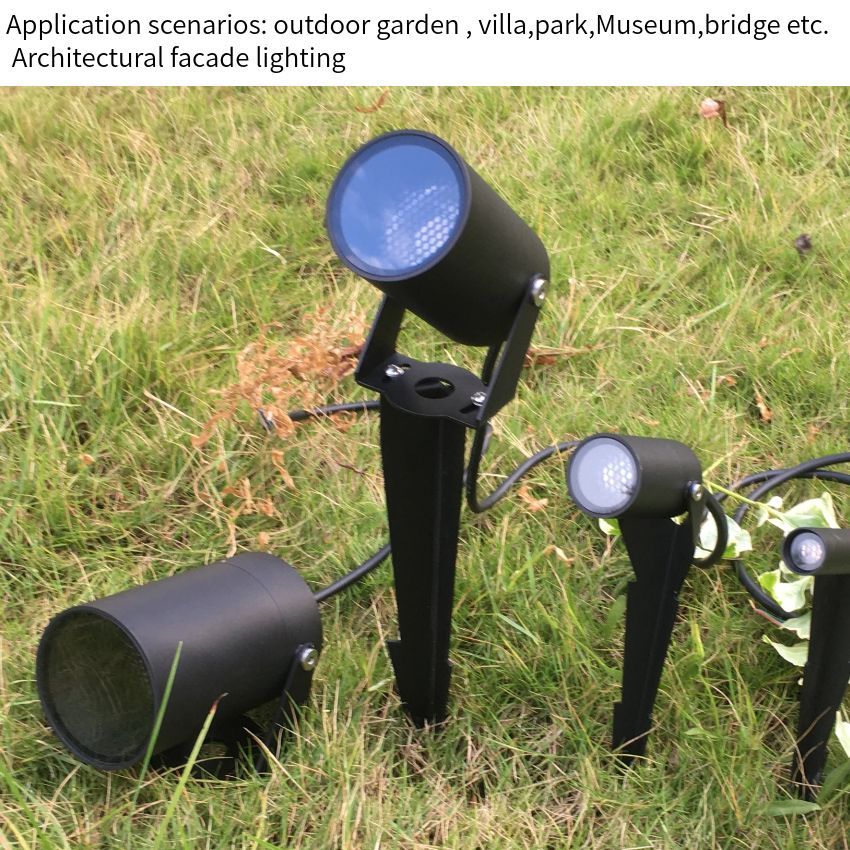

6. The lamp structure is mini and exquisite, suitable for use in various places such as construction and gardens.
7. The ground plug/shade is optional and needs to be purchased separately;
PRODUCT SPECIFICATION:
| Item No. | LA-RF7-16W LA-RF7-16WH | ||||||
| Input Voltage | DC24V /12V DC/AC 220VAC 120V | ||||||
| Power/LED(Watts) | 16W | ||||||
| Power suppy unit | ¨Integated ¨Triac/PWM ¨0～10V/DALI2 | ||||||
| Light Source | Bridgelux /CREE/OSRAM | ||||||
| Beam Angle［θ50%］ | 12.8°/21.1°/31.4°/41.5° | ||||||
| Color Temperature | 2700K/3000K/3500K/4000K | ||||||
| Wire connection way | 2*0.5 Rubber cable + branch 4CM bundle end 3*0.75 Rubber cabel | ||||||
| Outgoing line ［CM］ | 100 | ||||||
| Finishing Color | Outdoor black | ||||||
| Body Material | aluminum | ||||||
| Product Size［MM］ | 130*89*100 (DC24V) 146*91.5*100.5 (AC220-240V ,AC120V built-in) | ||||||
| IP/IK level IP/IK | IP66/IK09 | ||||||
| control method | ON/OFF,Triac,PWM, 0～10V,DALI,DMX512 | ||||||
| Warranty | 3 Years | ||||||
